Inline Vision Inspection Systems
E2M COUTH vision inspection systems check labels, fill levels, closures, seams, seals and printed codes inline, at line speed, on beverage, food, pharmaceutical, cosmetics and chemical lines. SolvAir is E2M COUTH’s UK distributor.
Key Features:
- Inline inspection on the existing conveyor – no line redesign.
- Every container measured against a stored reference as it passes.
- Defective containers flagged and diverted before the case packer.
- Glass, PET, cans, trays and vials, from 7,200 to 140,000 units per hour depending on model.
- One software platform, VisioInspect 2.0, across the range.
- Specified against your line and supported from the UK.
Key Specification:
- Camera, radio-frequency and infrared inspection methods, by application.
- Deep-learning image analysis on the inspection range.
- Ebivision installs in under 800mm of conveyor.
- 17-inch touchscreen interface.
- E2M COUTH holds ISO 9001 for its quality management system.
Products in this range

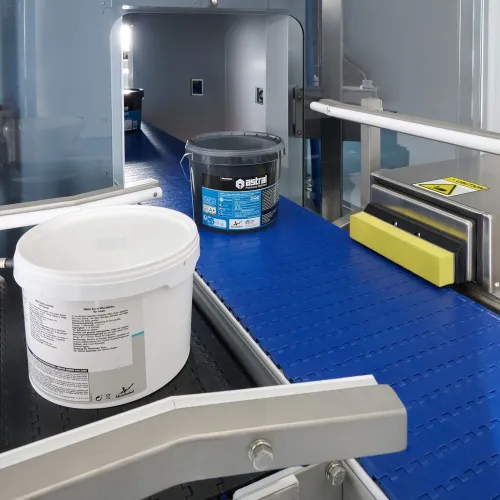

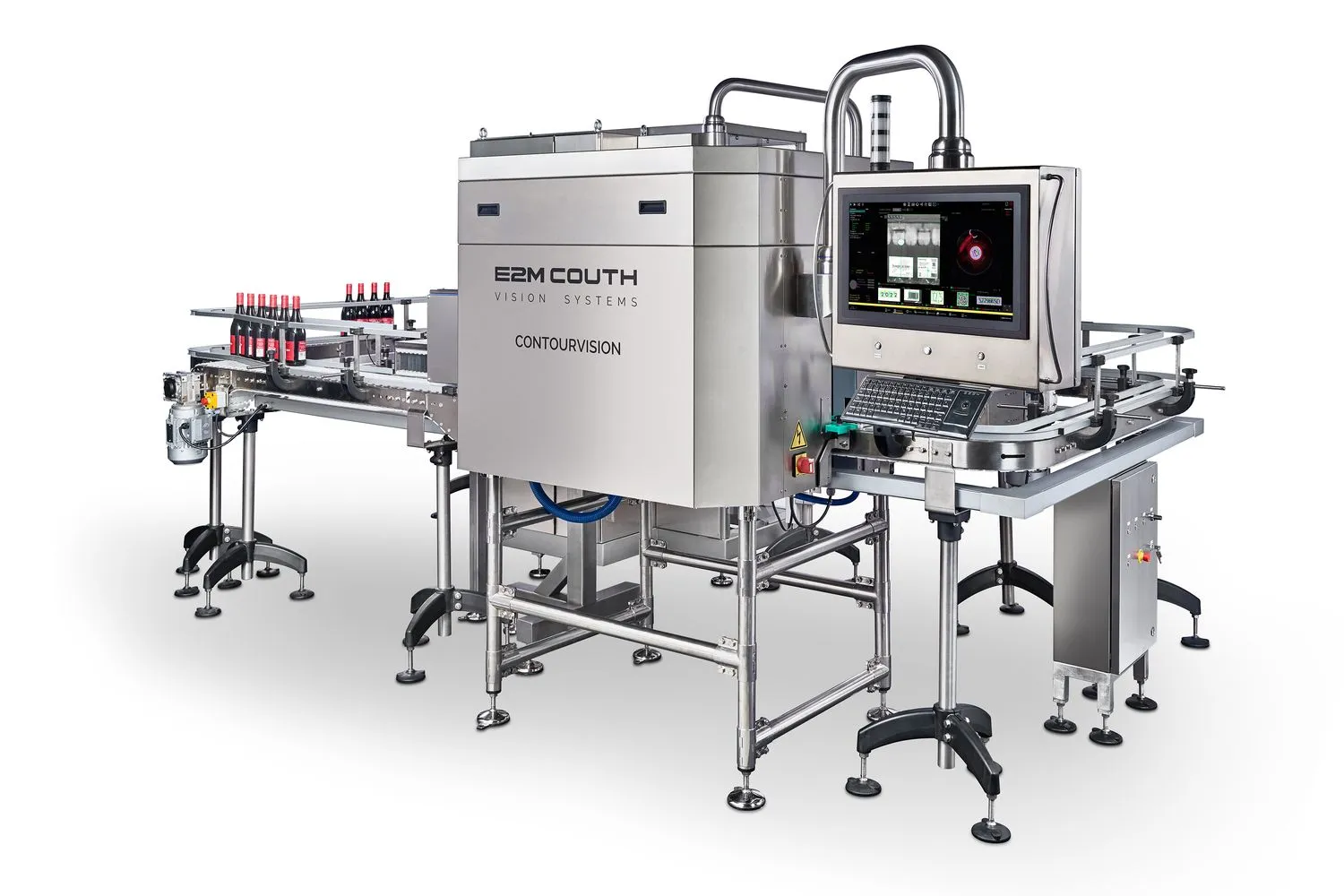

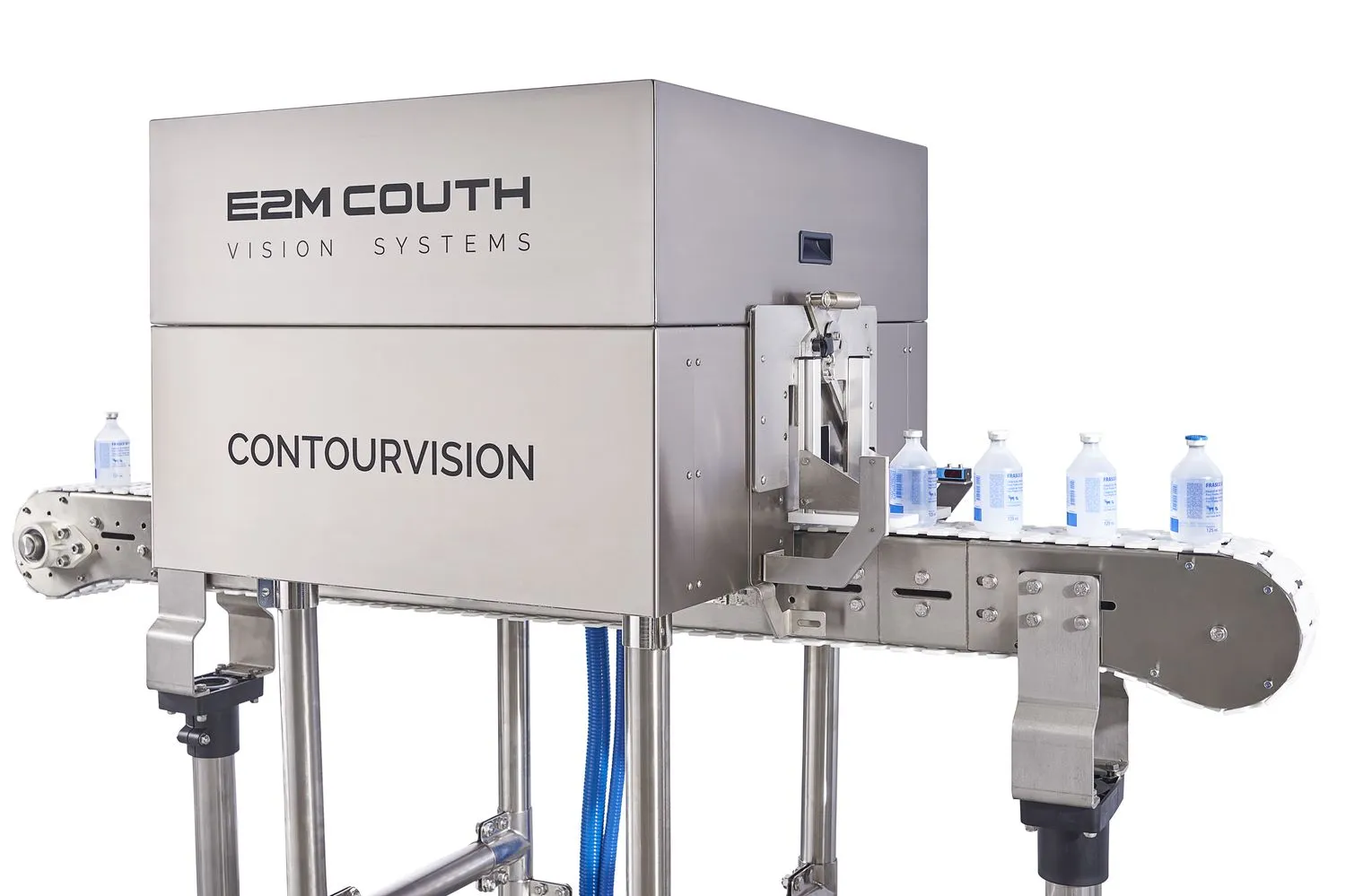

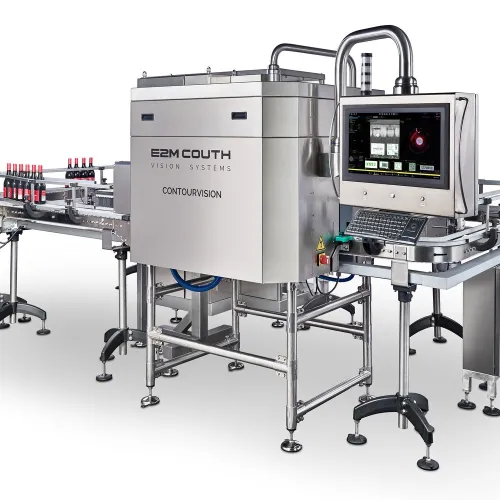

Contourvision
360-degree label inspection at up to 72,000 BPH, using 3D container reconstruction. Containers need no prior orientation. Installs on the existing conveyor outside the labeller, and stores multiple label templates per format.
Enquire about Contourvision

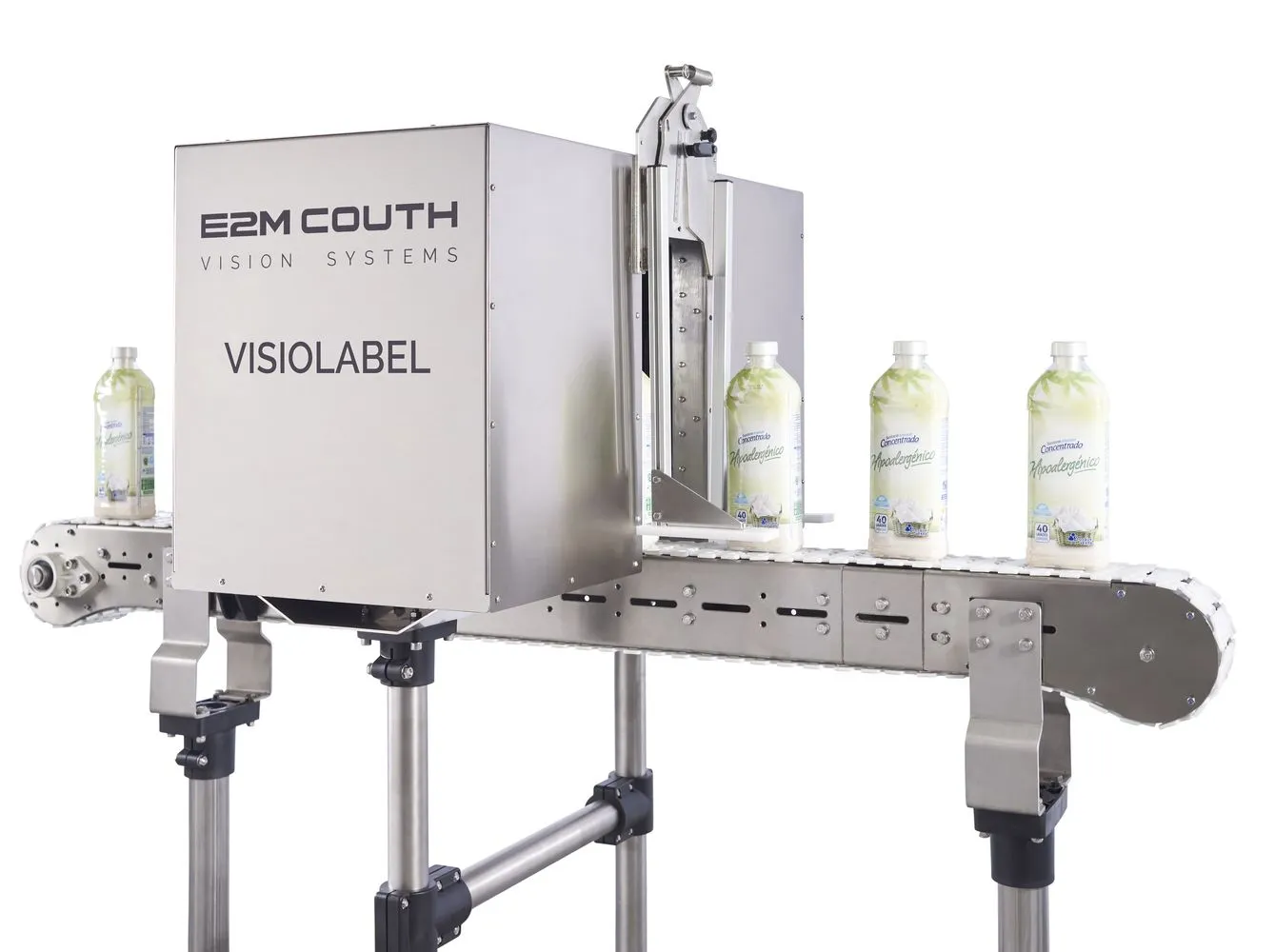

Visiolabel
Label inspection for containers already oriented on the line. High-resolution cameras and deep learning detect missing, upside-down, doubled, wrinkled, misaligned, tilted and deteriorating labels.
Enquire about Visiolabel

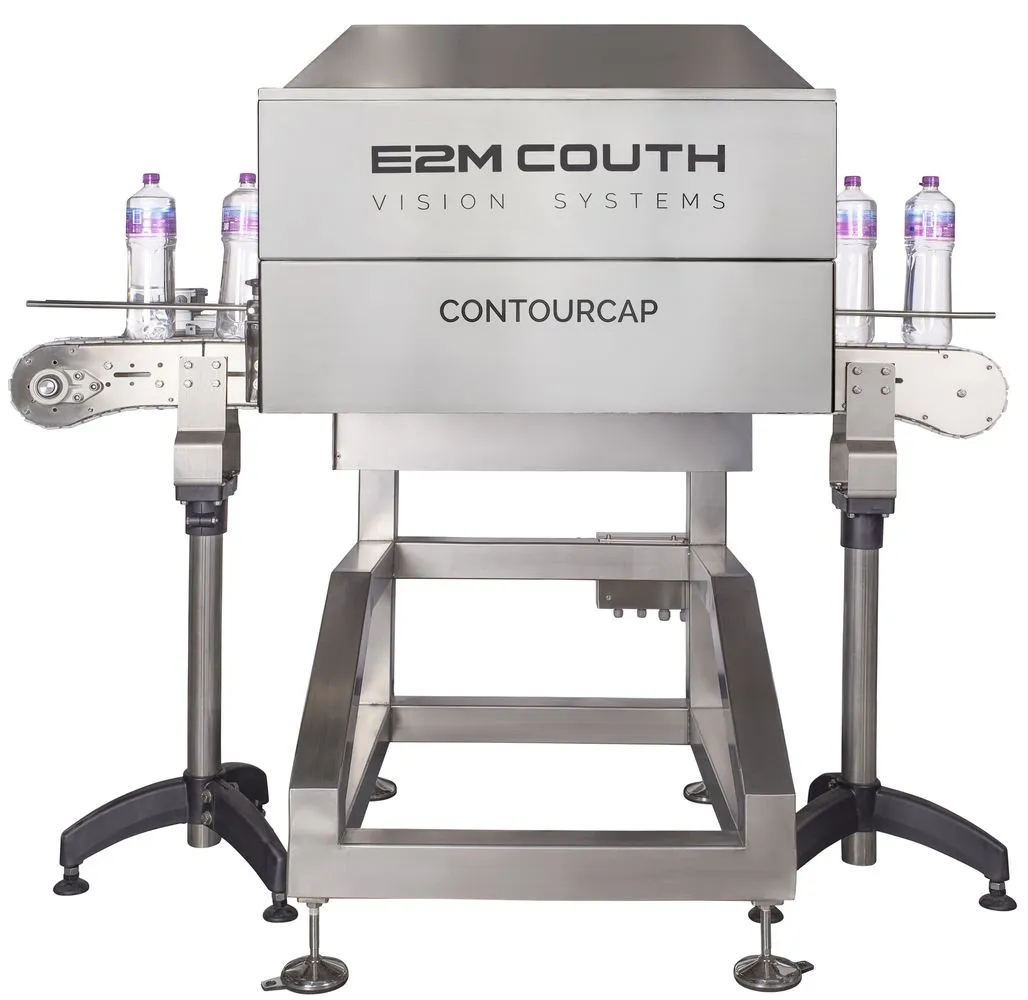

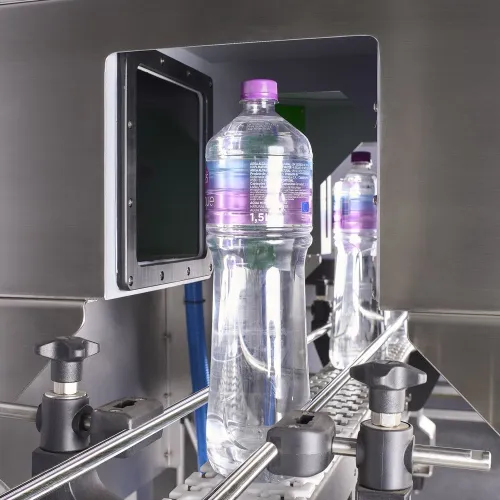

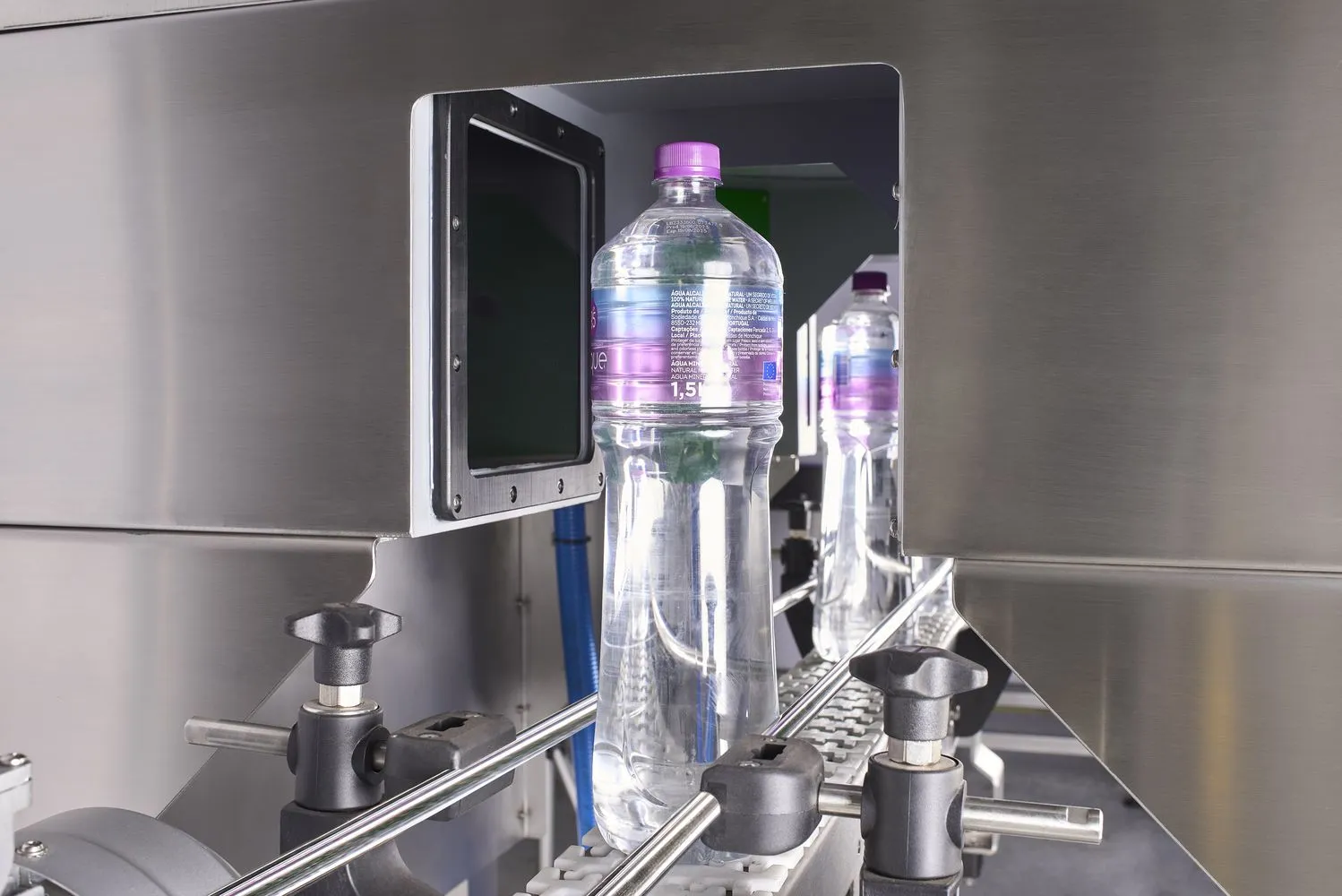

Contourcap
Full 360-degree closure control: cap positioning, cap integrity including broken tamper bridges, presence and correct type. Dedicated tooling available for tethered caps.
Enquire about Contourcap

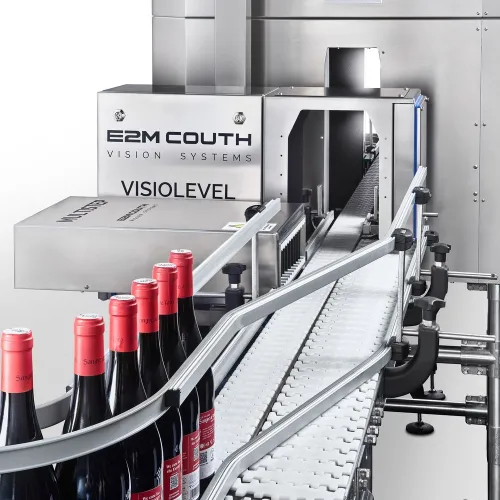

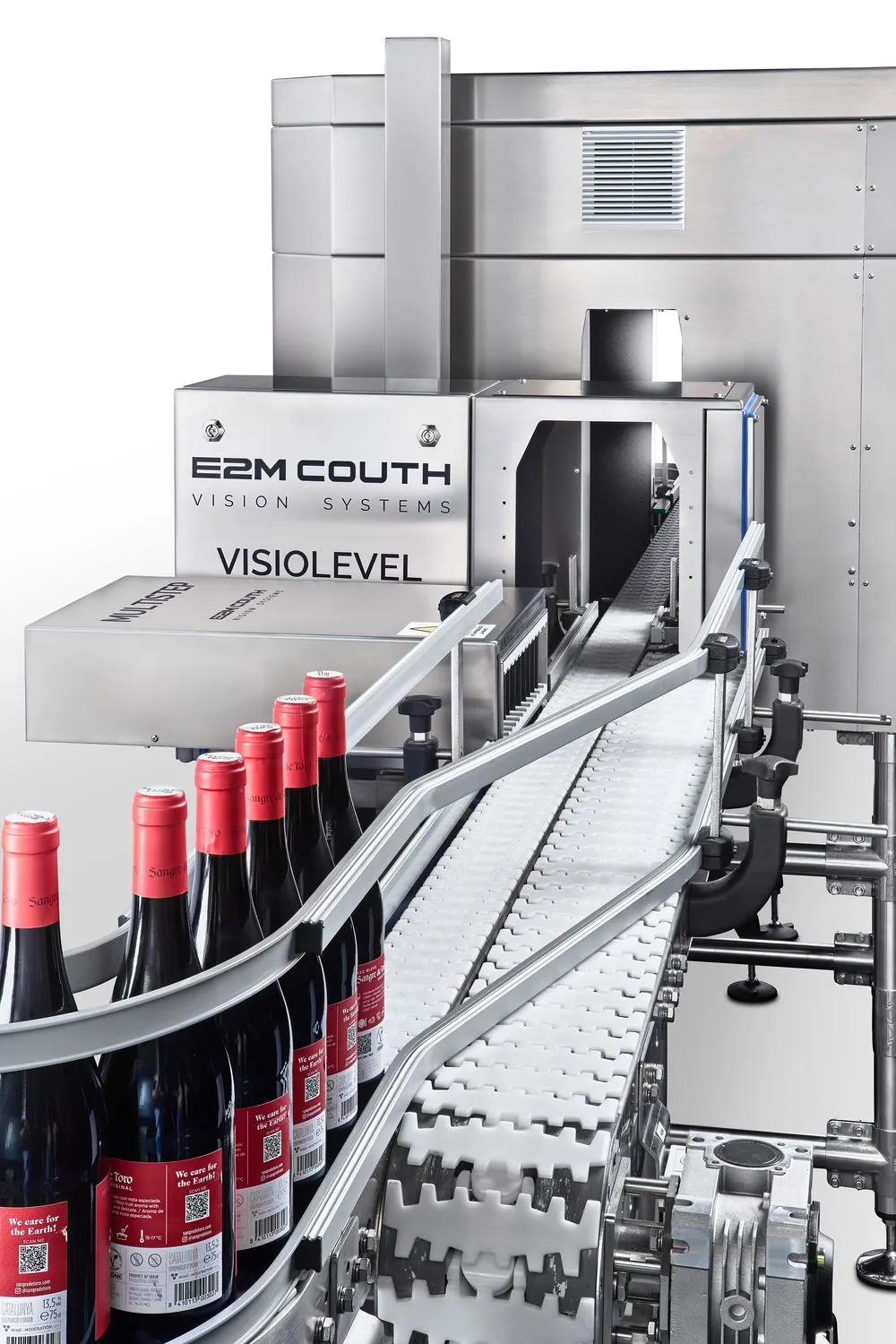

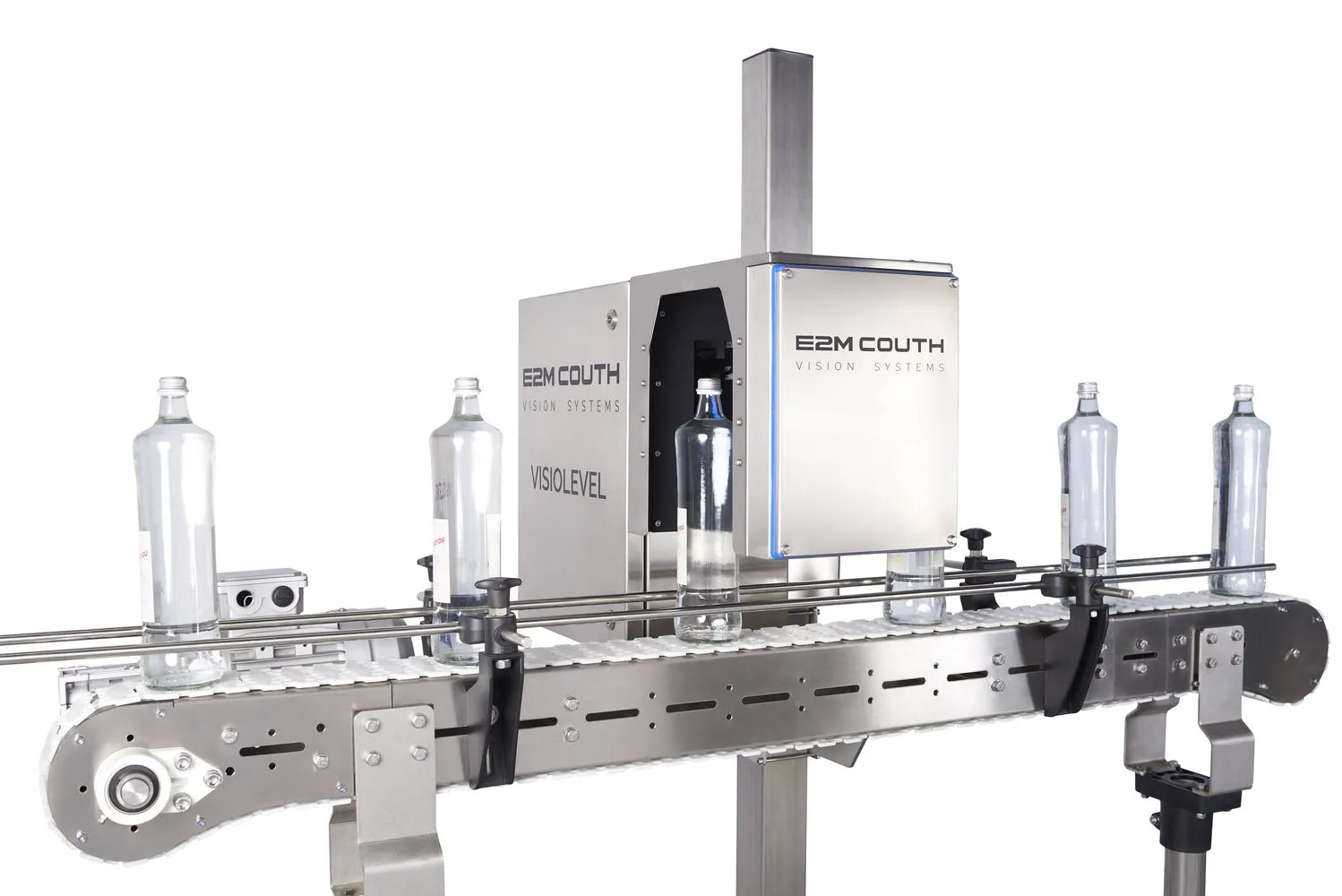

Visiolevel
Fill-level inspection at up to 120,000 BPH on transparent and opaque containers. Wave-compensation algorithm for liquid surge, automatic height adjustment, one or two cameras by model.
Enquire about Visiolevel

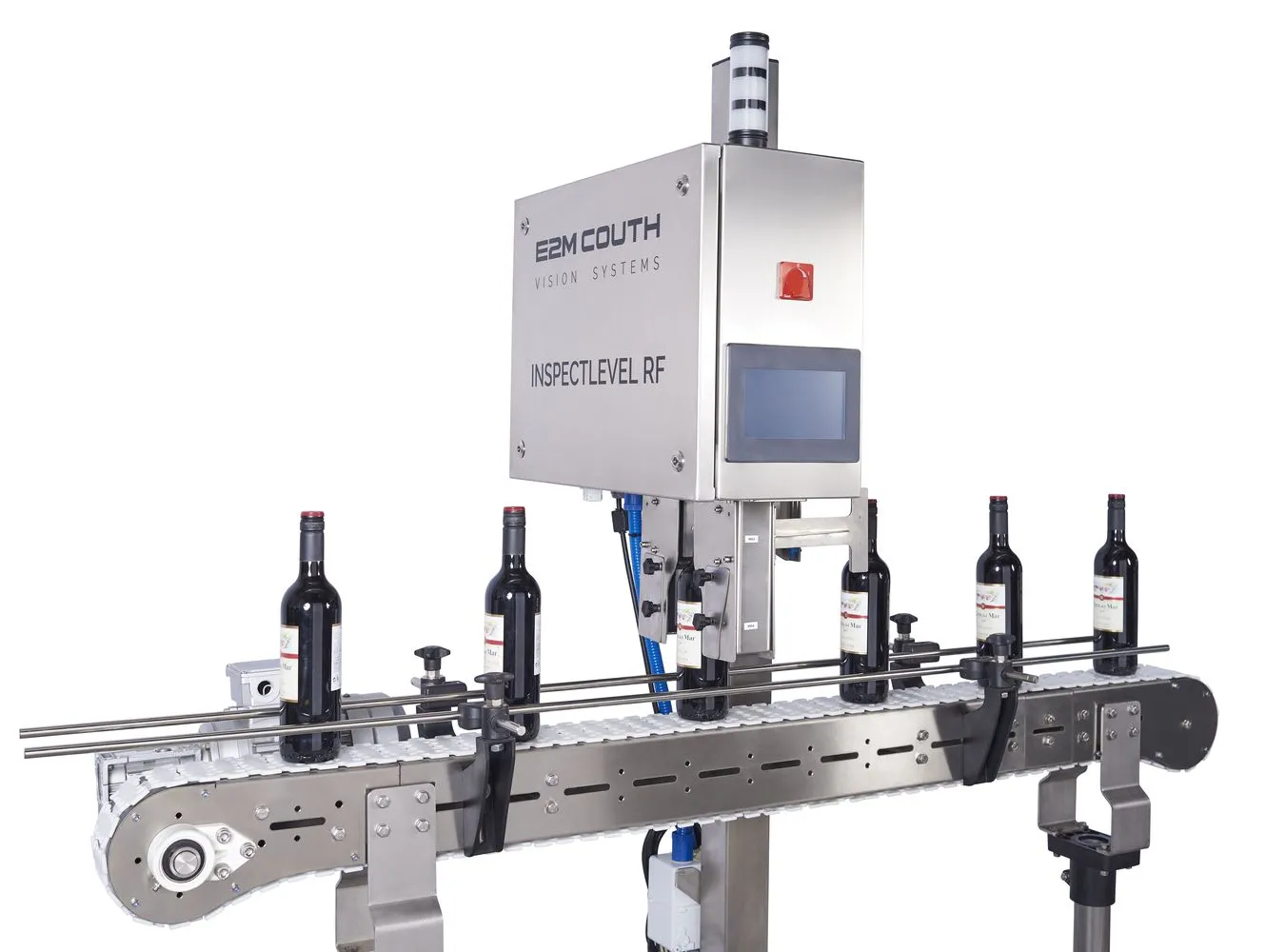

InspectLevel RF
Fill-level inspection for opaque and low-transparency containers at up to 90,000 bottles per hour, using low-level radio frequency and capacitive coupling. E2M states it carries no ionising radiation.
Enquire about InspectLevel RF

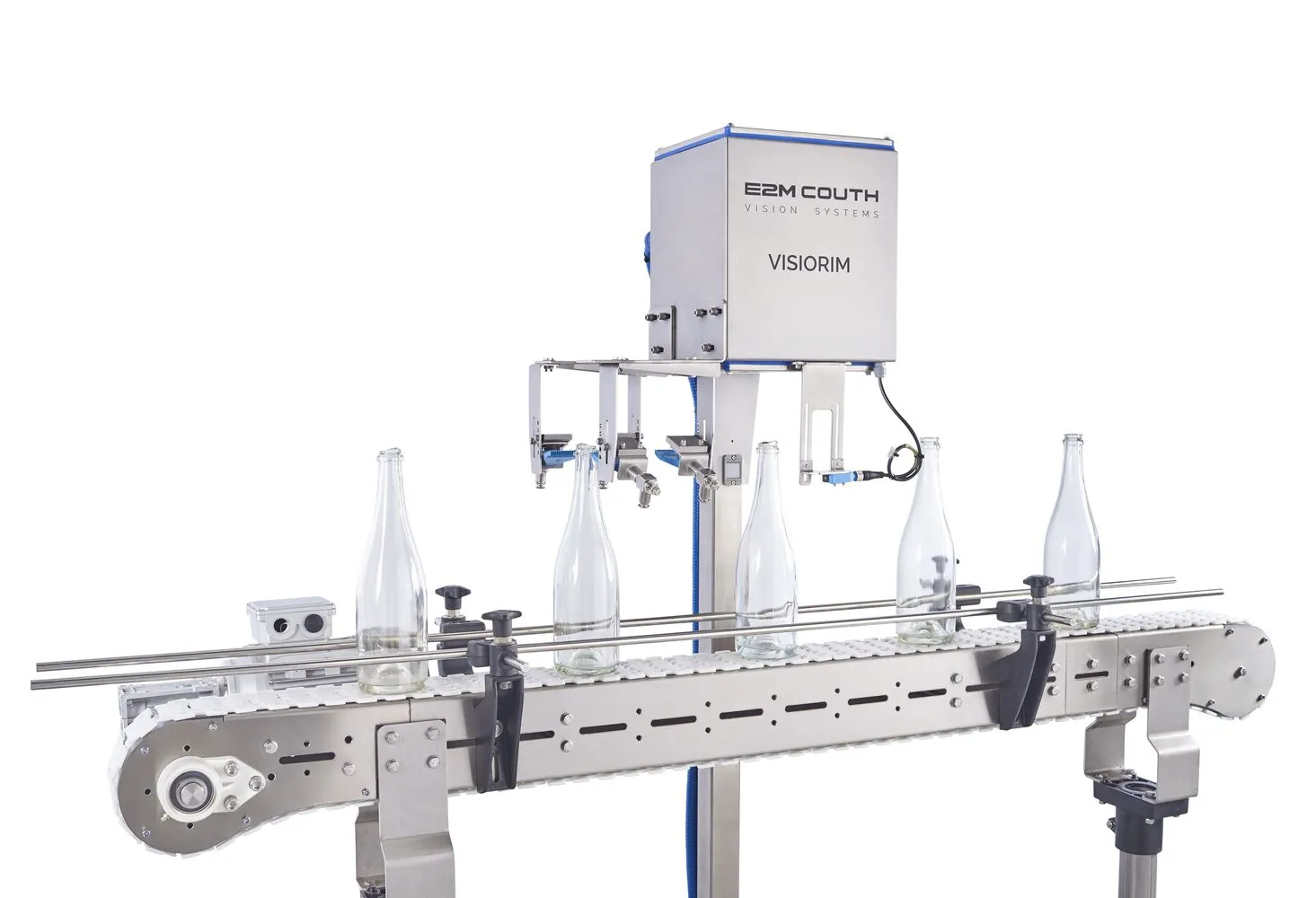

Visiorim
Bottle mouth and finish inspection for cracks, fissures, chips, deformations and excess foam. 1.3-megapixel monochrome CMOS camera under LED flash, up to 40,000 BPH depending on inspections enabled.
Enquire about Visiorim

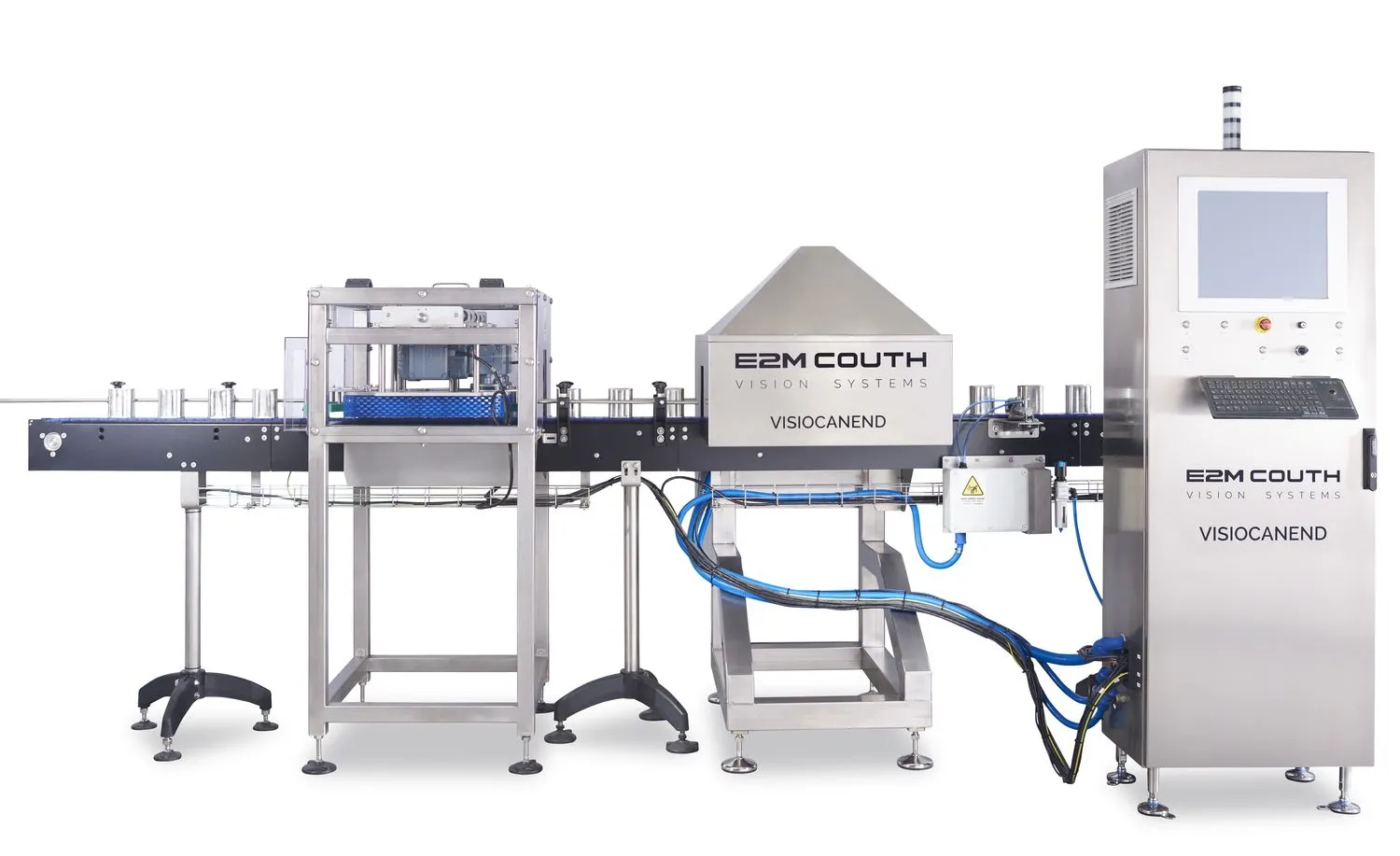

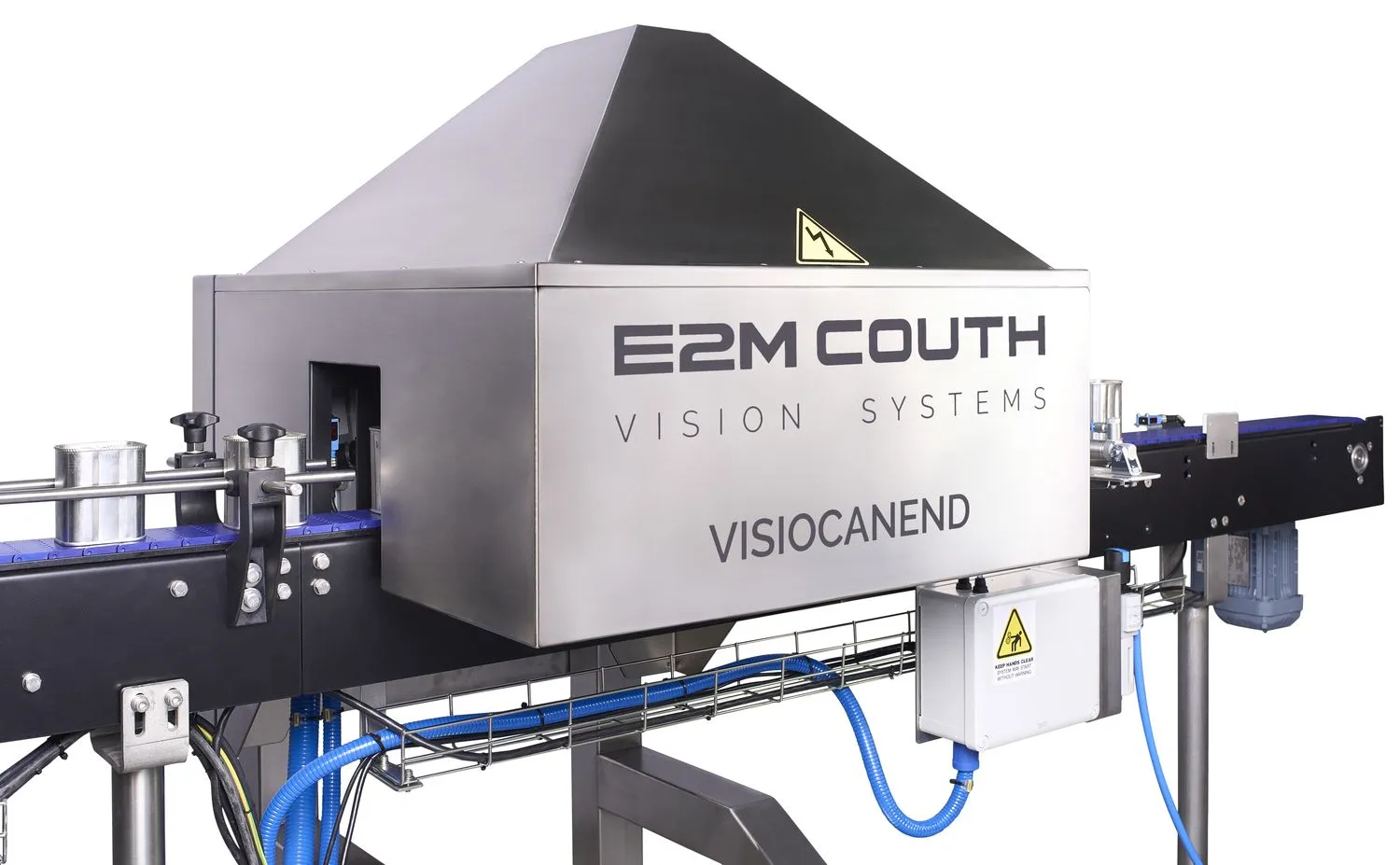

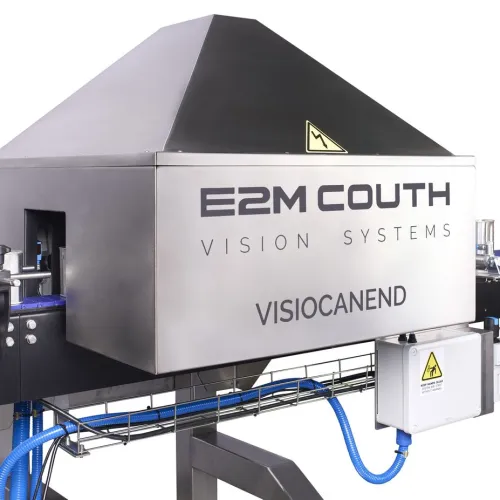

Visiocanend
Double seam and closure inspection on metal cans, detecting V-defects and holes down to 0.5mm at up to 36,000 UPH. Infrared light, unaffected by can colour or silk-screen printing. Up to seven cameras.
Enquire about Visiocanend

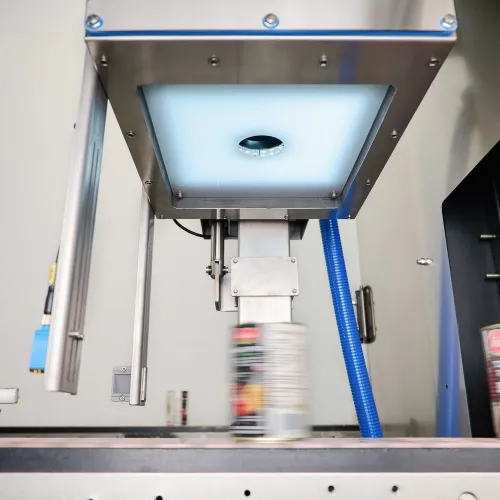

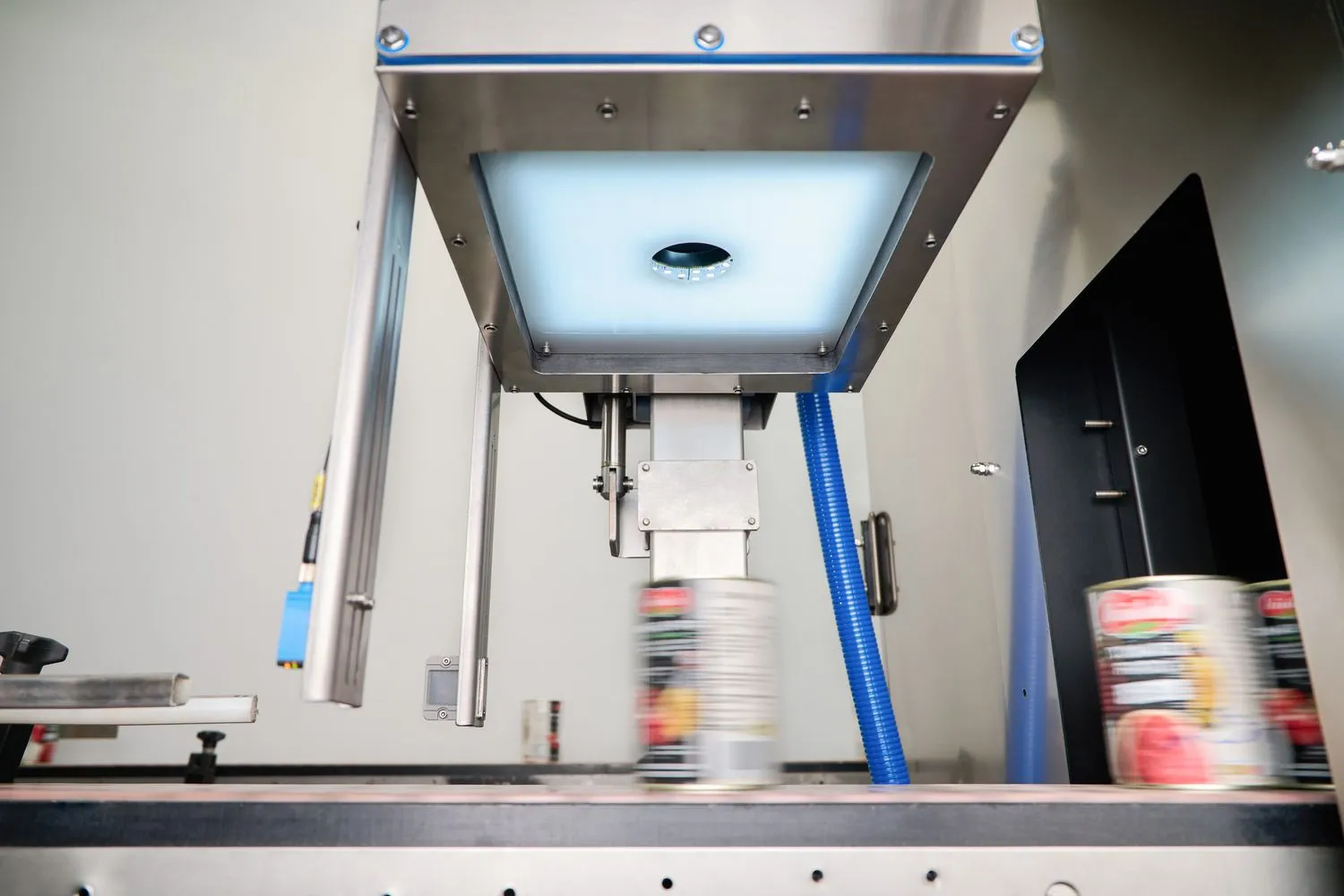

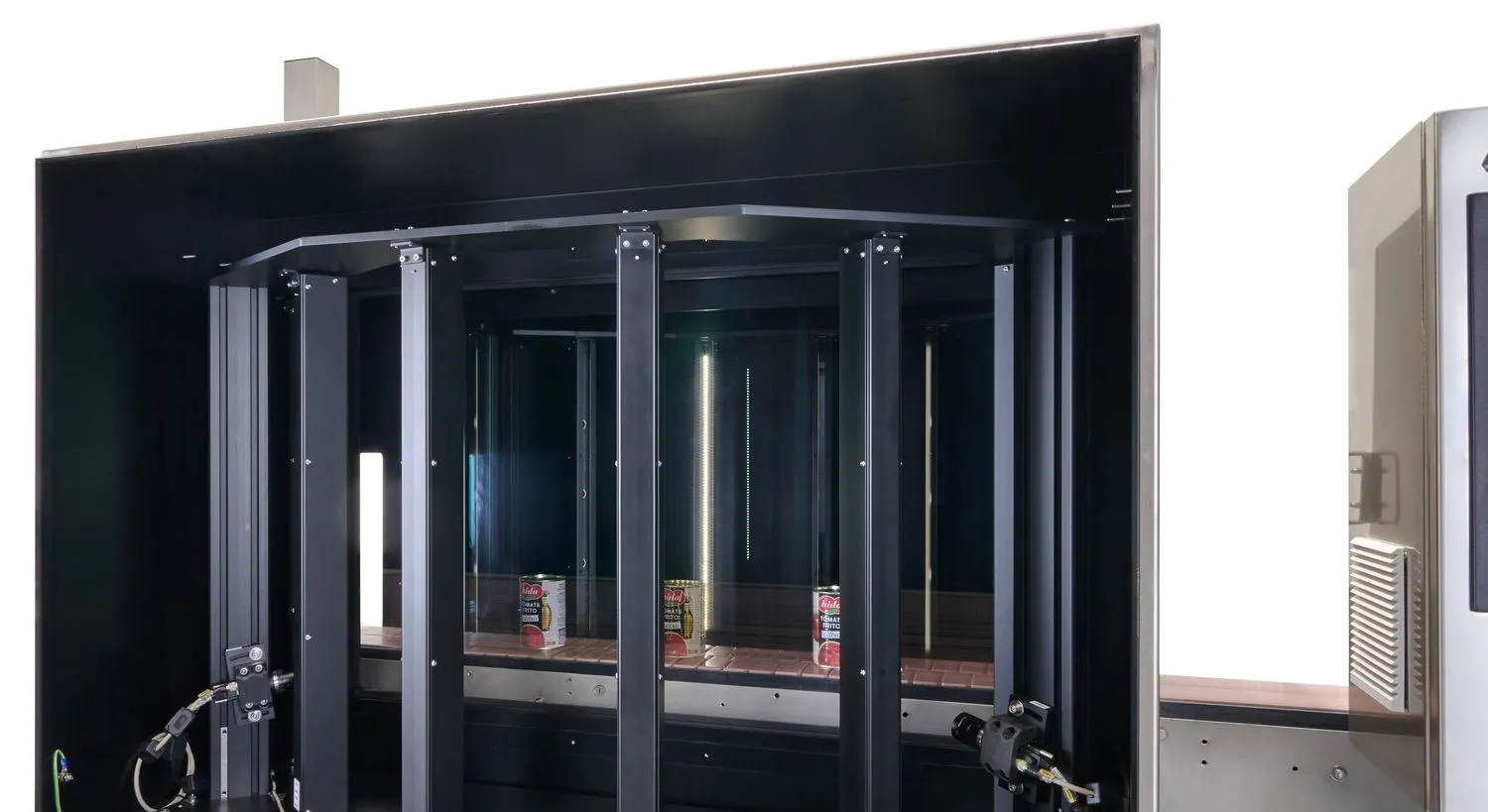

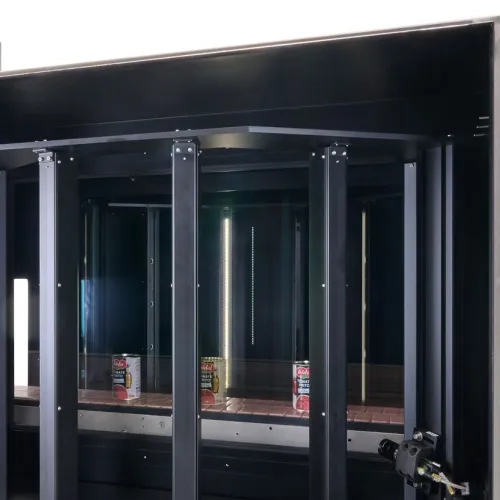

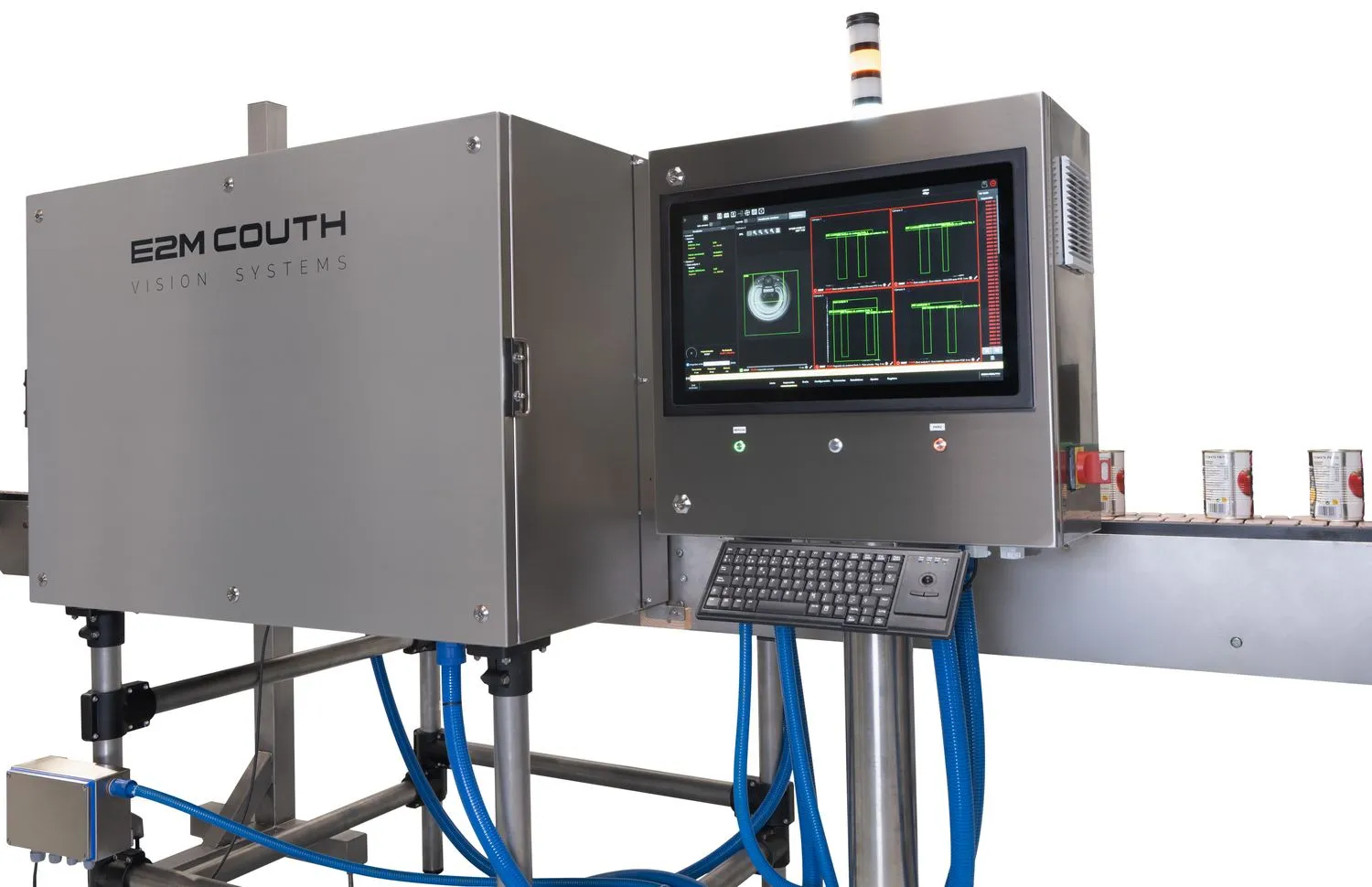

VisioDents
360-degree LED-lit can body inspection: dents and impacts on the perimeter, deformations, print defects on the walls, and ring positioning. Four high-resolution cameras, any colour, glossy or satin.
Enquire about VisioDents

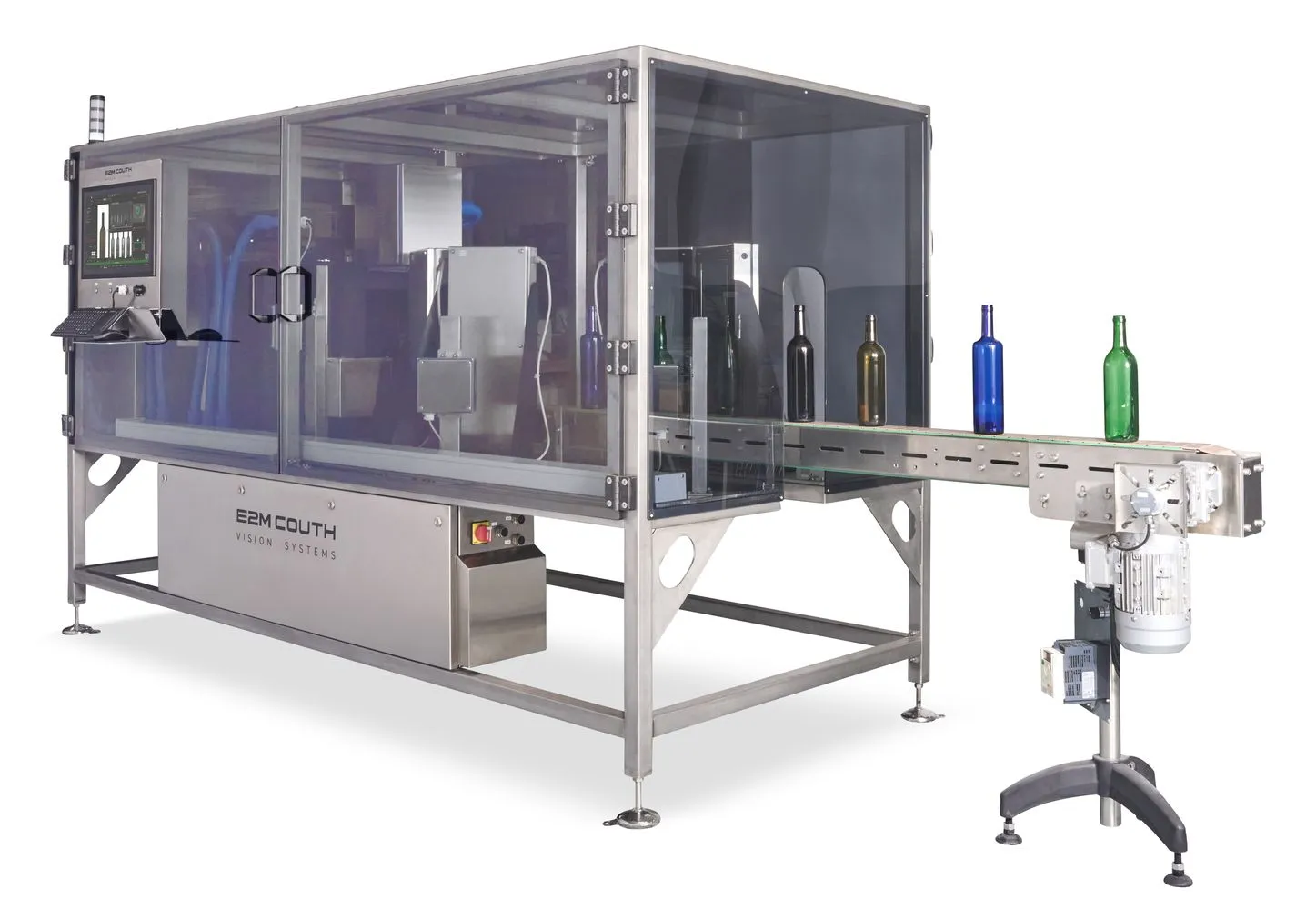

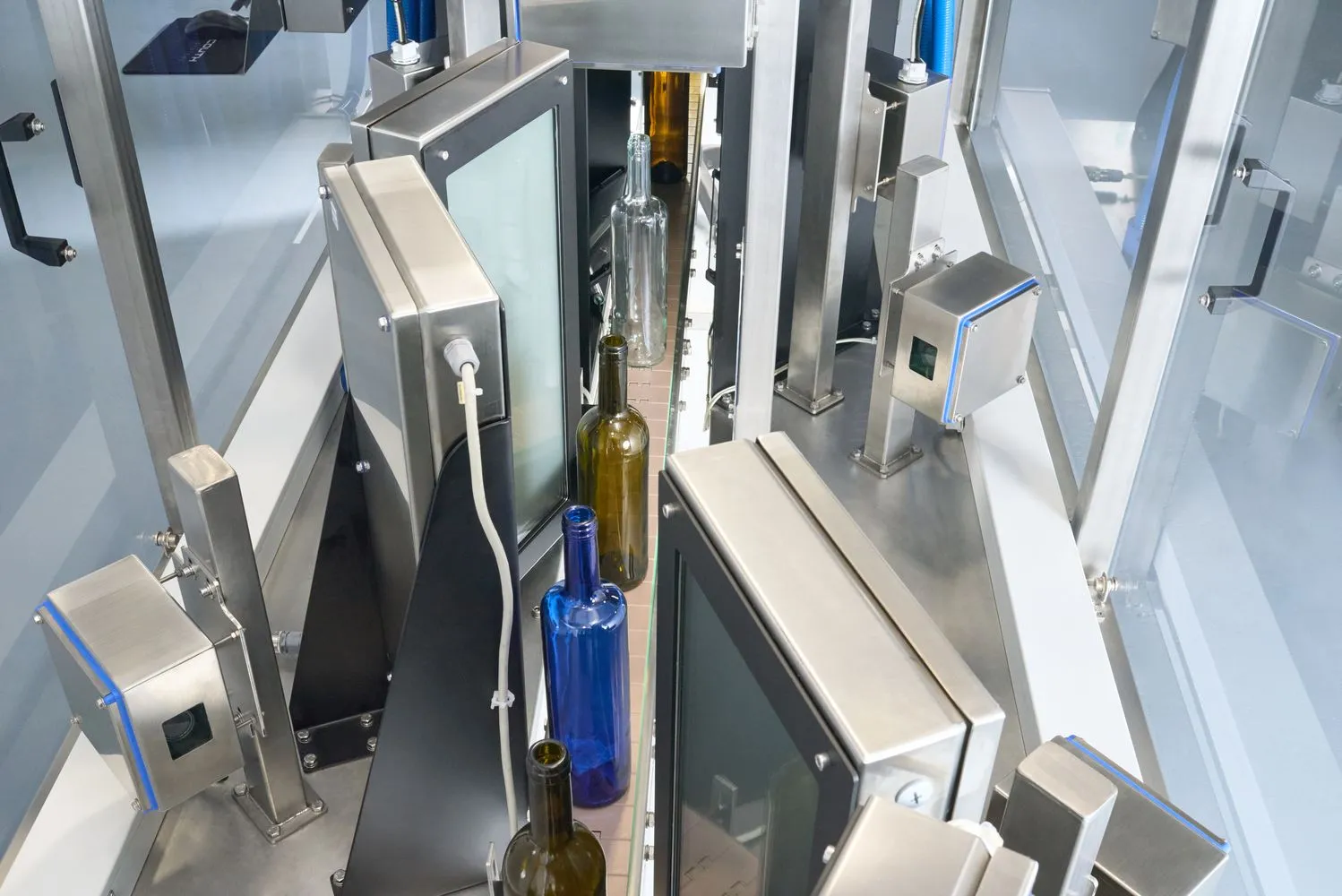

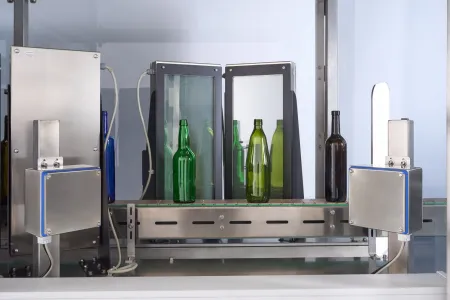

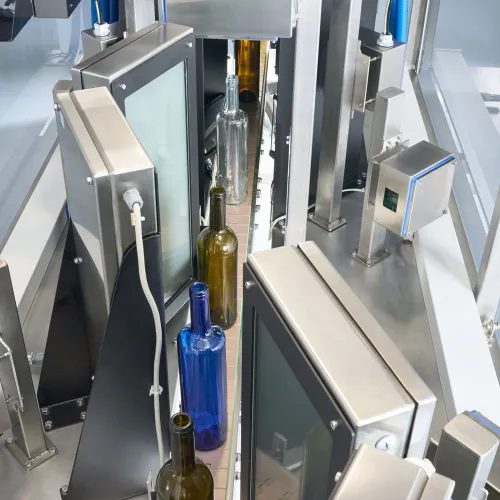

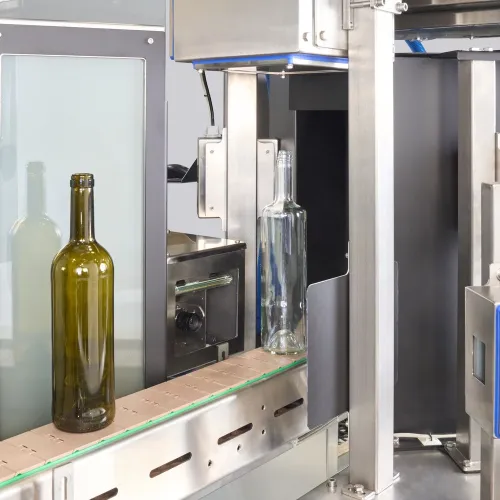

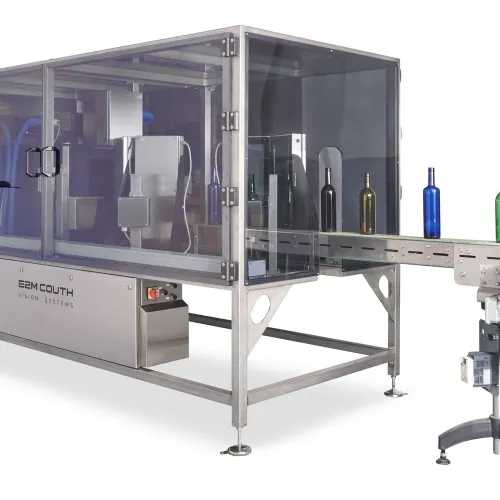

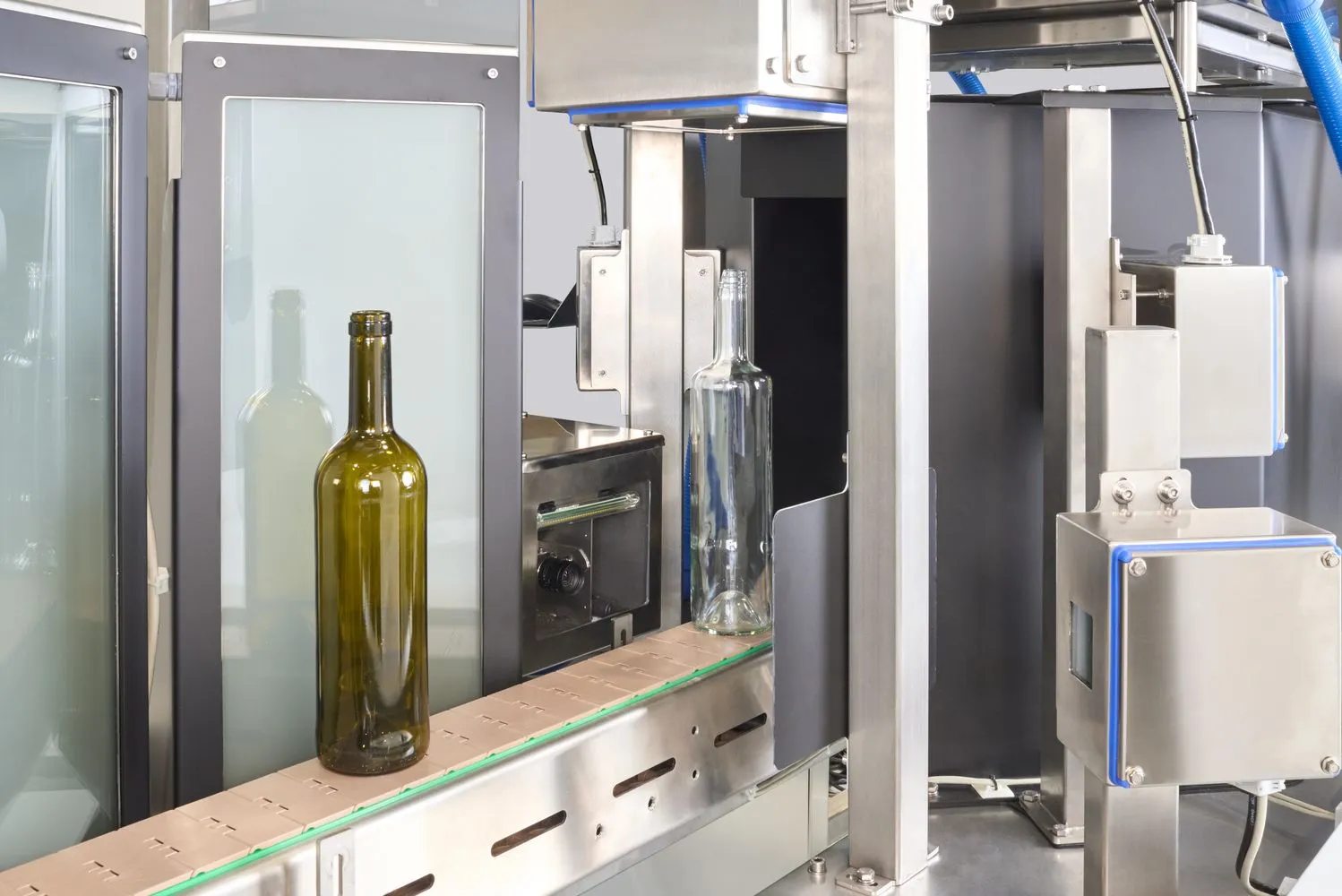

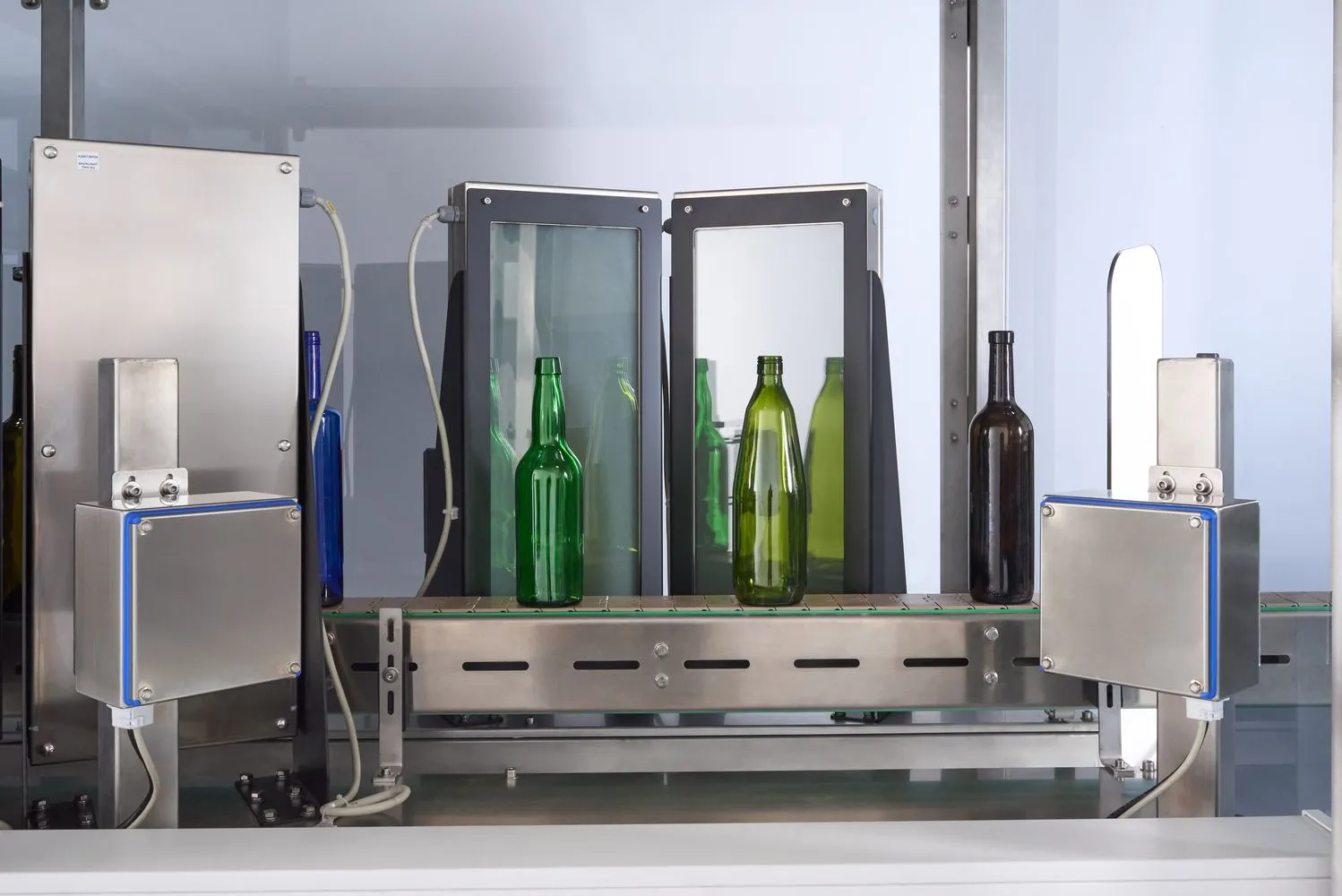

Ebivision
Empty container inspection after washing and before filling - fissures, stains, foreign bodies, residue and structural defects in walls, base and height. Rated to 90,000 BPH, typically run at 60,000. Installs in under 800mm.
Enquire about Ebivision

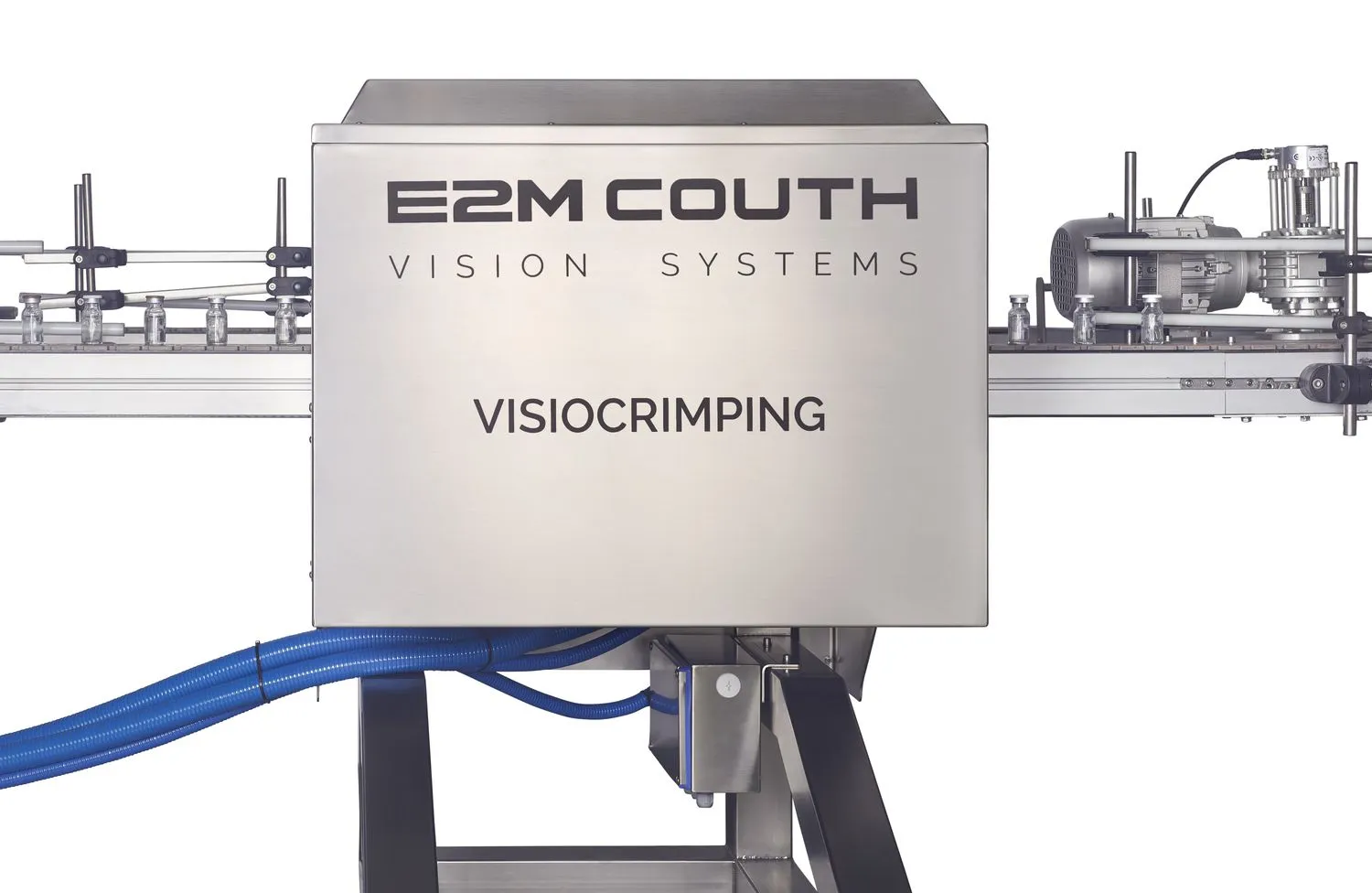

Visiocrimping
360-degree crimp, septum, capsule and print inspection for pharmaceutical and cosmetic vials from 10ml to 500ml. Two-colour directional lighting reveals scratches on the capsule.
Enquire about Visiocrimping
Drying and inspection sit next to each other on a packaging line. SolvAir Air Knife Systems clear water, condensation and surface debris from containers before they reach the cameras, so E2M Couth vision systems inspect a clean, dry surface. That means clearer images and fewer false rejects.
How Air Knives and vision systems work togetherSpeak to a SolvAir specialist
