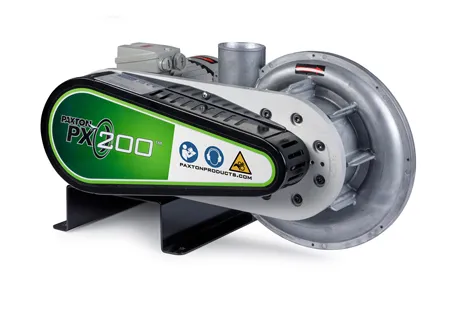

PX200 Series Air Blower

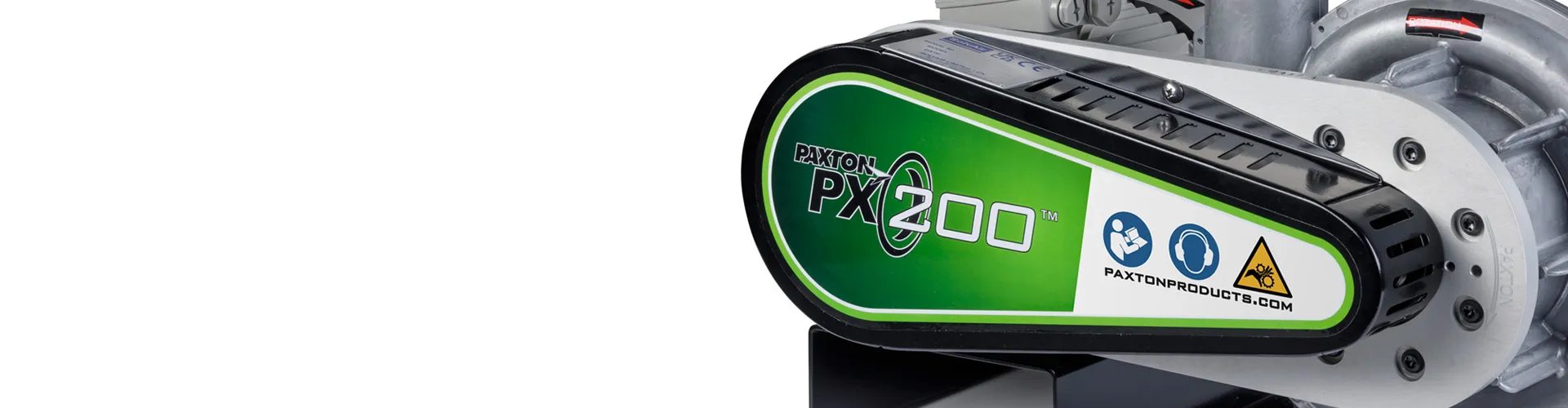

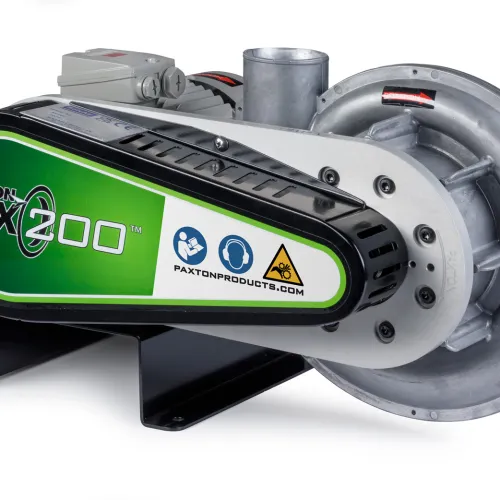

Ultra High Performance Centrifugal Blower, Belt Driven with Automatic Tensioner offering unmatched efficiency, power and reliability More about this blowerPX200 Series Air Blower
Ultra High Performance Centrifugal Blower, Belt Driven with Automatic Tensioner offering unmatched efficiency, power and reliability

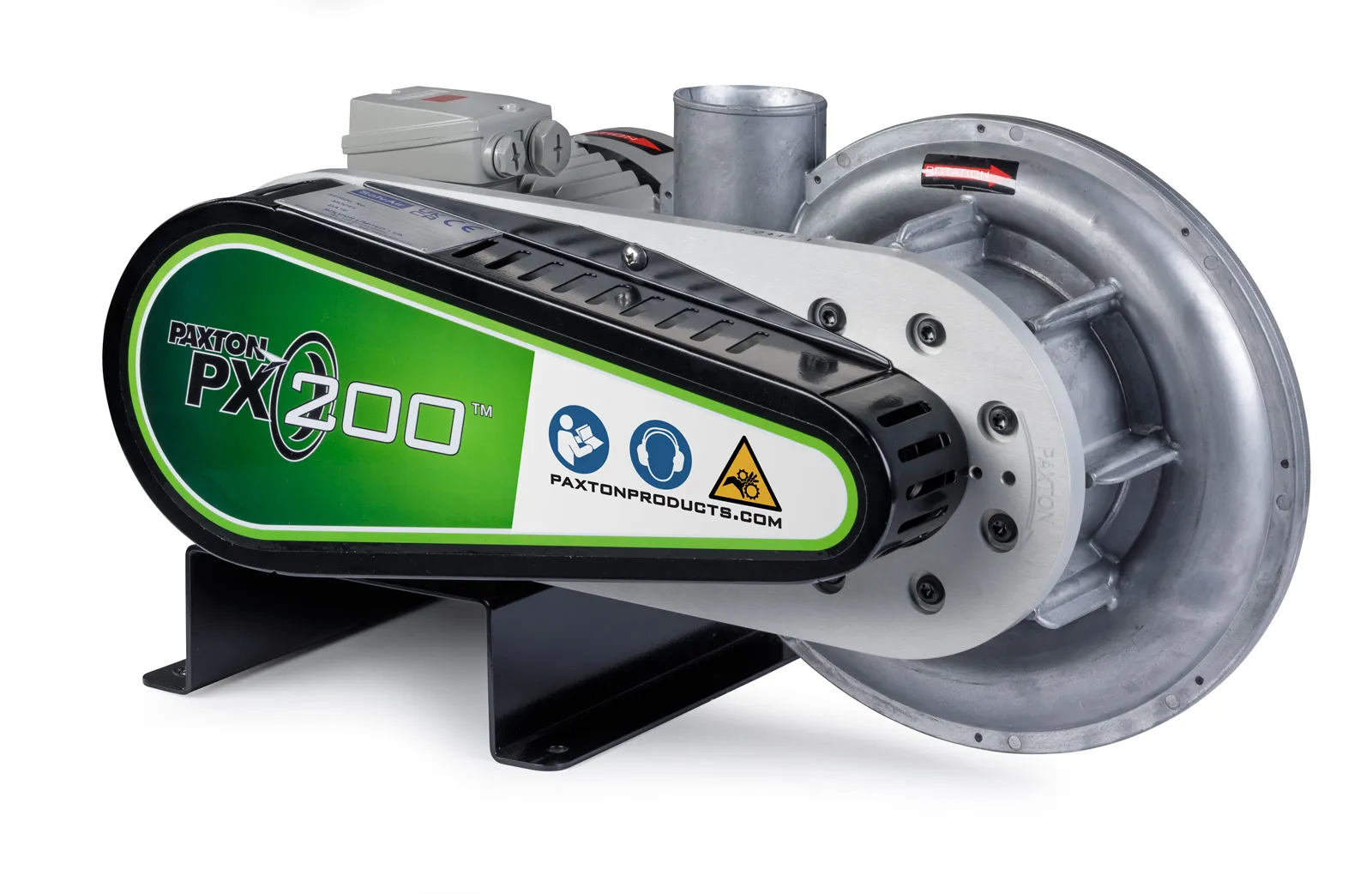

PX200

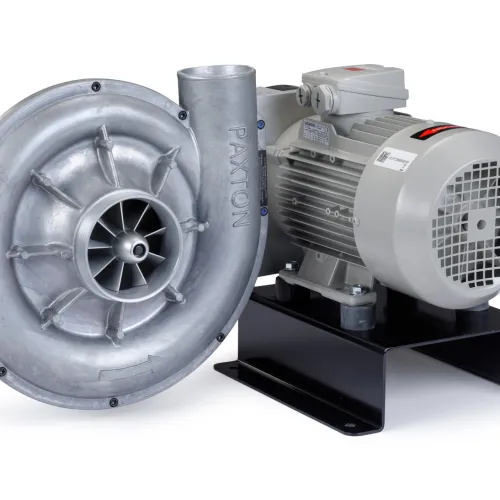

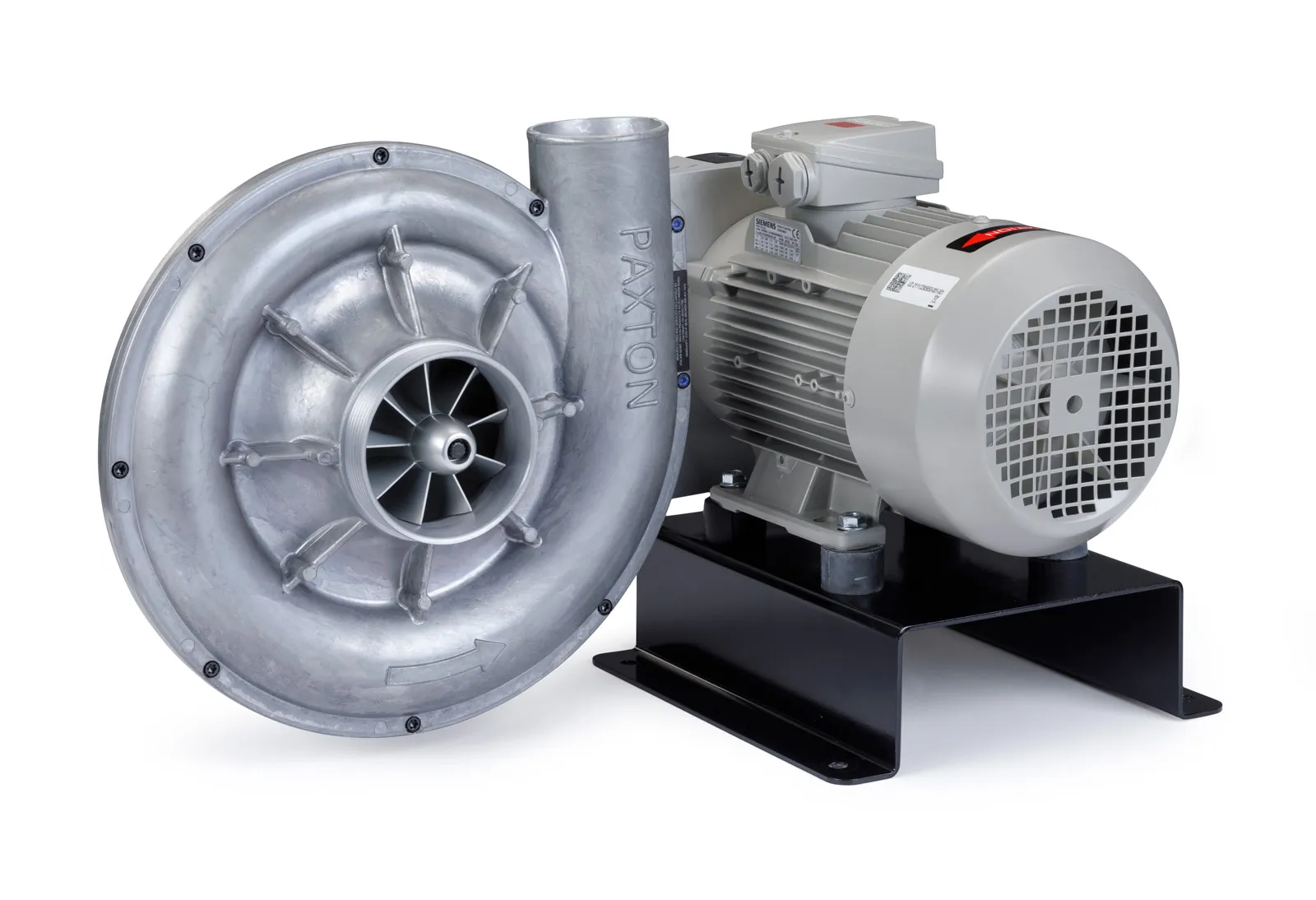

The entry-level PX200 is a high-performance centrifugal blower that’s ideal for smaller-scale industrial and manufacturing processes. Powered by a 1.5kW motor and driven by an auto-tension belt, it generates air flow of up to 595 m3/hr @ 75 mbar.
Energy-efficient, versatile and reliable, the PX200 is a low-cost, low-maintenance option. As with all our blowers, it comes with a reassuring three-year warranty and a 100% performance guarantee when combined with Paxton Air Knives, manifolds and nozzles.
More Power – Less Energy
- The PX200 generates as much as 595m³/hr @ 75 mbar of air flow, with its 1.5kw motor
- The PX200 uses a 1.5kw motor but generates as much air flow as a standard 2kw blower
- 65% Maximum Efficiency
Technical Spec
- 1.5kW Motor
- Outlet Diameter 76mm
- Frame Size 90S

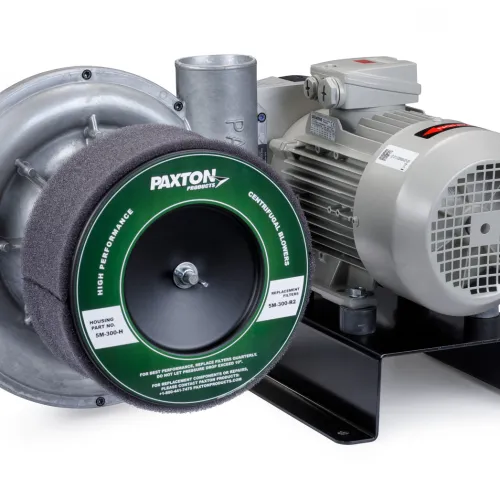

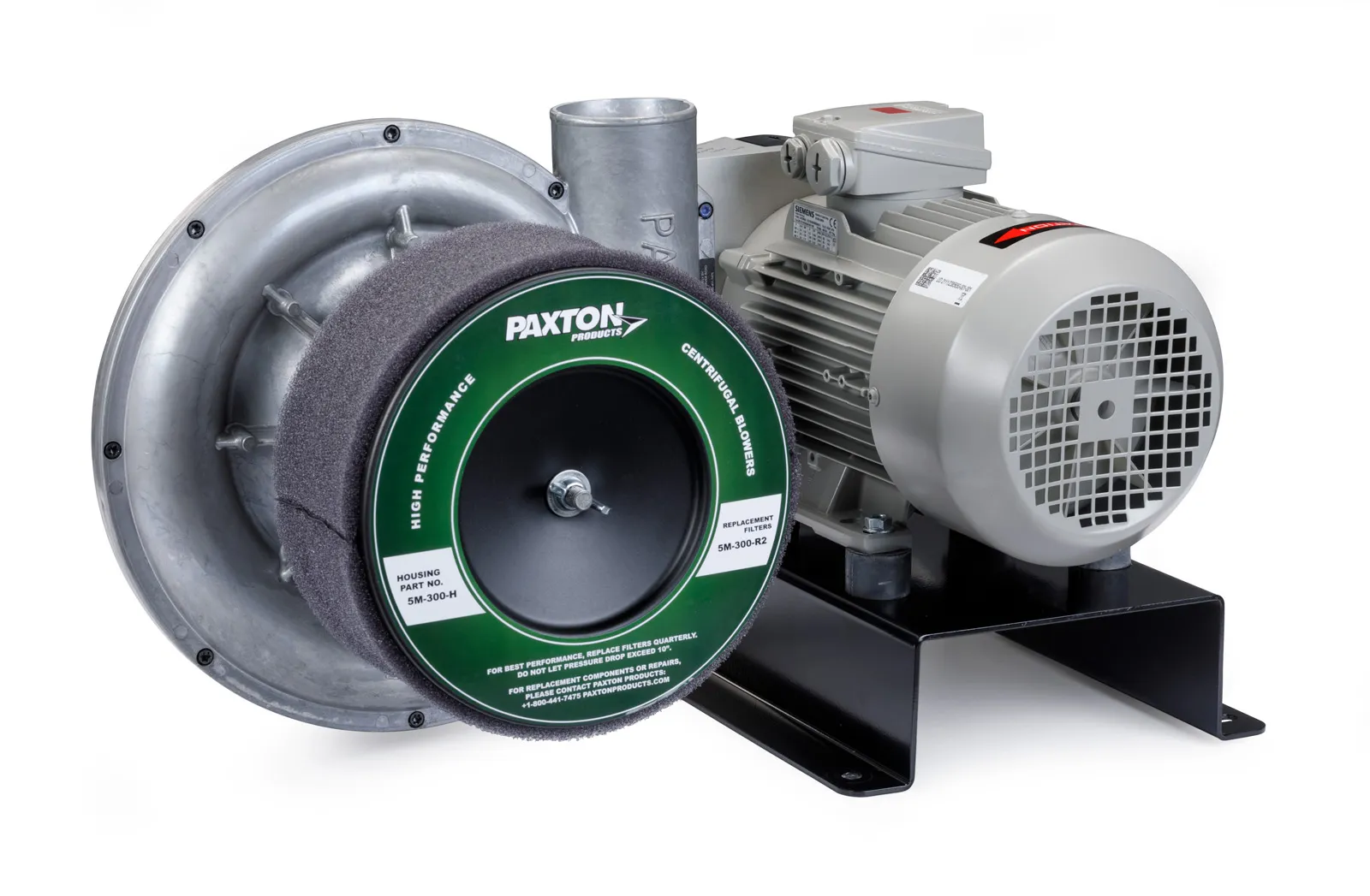

- Two Stage Filter with Silencer and housing. 509m³/hr. 5 Micron @ 99% Efficiency
Technical Specifications and datasheets
Energy Savings
The PX range runs on a fraction of the power compressed air needs, and costs less to run than other centrifugal blowers too. See how we calculate these figures
Installation size
Annual saving
£56,745
2,500mm of Air Knife · 3,120 running hours a year @ £0.25/kWh
7.6× cheaper to run
Costs per year
Air Knife Blower Features
Our Air Blowers offer unmatched performance & efficiency - and are backed with our industry-leading 3 year warranty.
3 Year Warranty
Unmatched 3 year warranty on all our blowers as standard. Prior to leaving the factory, all blowers undergo stringent balancing, quality control and testing.
Longer Service Life
Every Paxton Blower is designed to use minimum belt tension, comes with a two stage filter, and generates less heat, significantly extending the life of the blower.
Lower Maintenance
High-performance Air Blower Inlet Filters protect our Blowers from debris, oil and moisture, significantly extending the lifespan of your blower.
Quiet Operation
The precision manufacturing and advanced engineering reduces the vibrations and noise of our Air Knife Blowers, which together with the silencer cartridge which is standard on all PX Series Blowers.
Maximum Efficiency

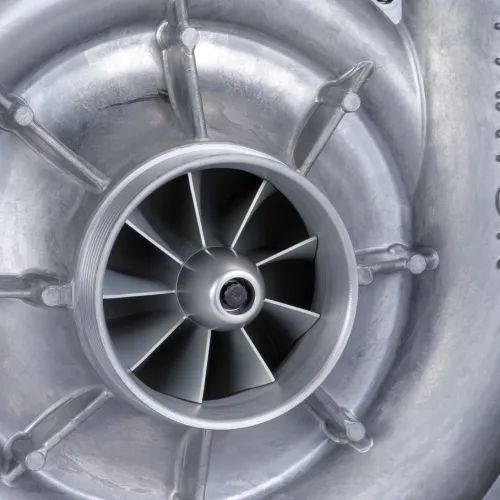

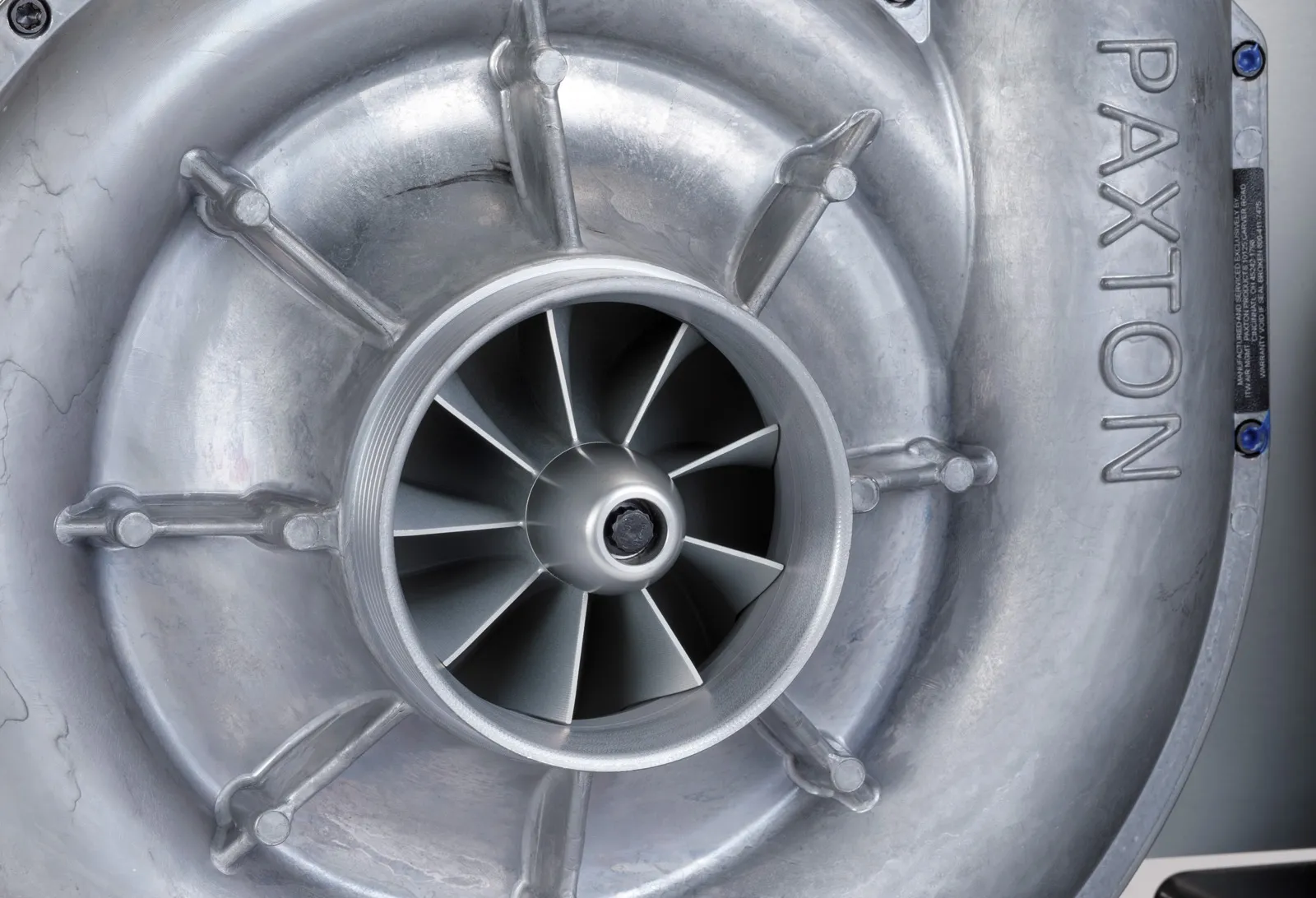

The PX-Series state-of-the-art impeller design produces more airflow at lower blower speeds, creating unmatched efficiency, with blower efficiencies as high as 80%, meaning you use 33% less energy.
Maximum Performance
Available at power ratings from 1.5kW to 15kW, the PX-Series Air Knife blowers are ideal for small and large industrial applications. The PX-2000 generates as much as 2550m3/hr of air flow with its 15kW motor.
Full PX Blowers Feature & Benefits
Highly Efficient For Lower Energy Costs
Ultra efficient design reduces energy costs by 50-80%, with the PX Series running 20–30% more efficient than other centrifugal blowers.
The PX2000 generates as much as 2550m3/hr of air flow with its 15kW motor. This is in contrast to only 1910m3/hr of air flow with typical 15kW blowers and means the PX Series is ideal for both small and large industrial applications.
Stringent Quality Control
All our blowers are is subject to stringent balancing, quality control and testing before leaving the factory.
Highly Reliable
The PX Series comes with high load capacity beating at rated speeds for longer bearing life.
Space Saving Design
All Paxton blowers meet IEC and NEMA standards, and come with versatile mounting and outlet positions for tight spaces.
PX200 Series Air Knife Blower Comparison
Available at power ratings from 1.5kW to 15kW, the PX-Series blowers are ideal for small and large industrial applications.
| Temperature Range, Ambient: Up to 40°C ambient | Impeller: Machined from 6061 aluminium billet |
| Intake Air Temperature: Up to 49°C Intake as Standard | Warranty: Three year warranty |
| PX200 | PX500 | PX750 | |
|---|---|---|---|
| Power | 1.5kW | 4kW | 5.5kW |
| Frequency | 50 Hz | 50 Hz | 50 Hz |
| Voltage (Phase 3) | 400 | 400 | 400 |
| Maximum Efficiency | 65% | 66% | 72% |
| Maximum FLOW Output | 595 m³/hr @ 75 mbar | 1104 m³/hr @ 30 mbar | 1189 m³/hr @ 45 mbar |
| Maximum POWER Output | 255 m³/hr @ 100 mbar | 170 m³/hr @ 210 mbar | 170 m³/hr @ 210 mbar |
| Weight | 64 kg | 73 kg | 115 kg |
| Frame Size | 90S | 112M | 132S |
| Blower Intake Filter | Two Stage Filter with Silencer and housing. 509m³/hr. 5 Micron @ 99% Efficiency. | Two Stage Filter with Silencer and housing. 1360m³/hr. 5 Micron @ 99% Efficiency. | Two Stage Filter with Silencer and housing. 1360m³/hr. 5 Micron @ 99% Efficiency. |
| Outlet Diameter mm | 76 | 76 | 76 |
| View this blower | View this blower |
PX200 Case Studies
See all our case studies
£100k+
Annual Savings
Standard Profil Energy-Saving Drying
Standard Profil relied on compressed air for the drying process on each of its five production lines, with every line consuming 3417 litres/minute and driving up…
36,000/hr
Cans Dried
Thai Union Can Drying System
Thai Union is a fish processor whose high-volume operations handle 36,000 cans an hour. Residual water on the cans was compromising inkjet coding quality and hygiene,…
Zero
Water Used
Lervig Waterless Bottle Rinsing
Lervig Brewery in Norway needed its beer bottles thoroughly cleaned inside before filling, and its existing methods were inefficient and costly. SolvAir solved the issue with…
Speak to our PX Series Blower specialists
To discuss blower options for your business, or for any queries on our PX Series blowers, please call us, email us at info@solvair.co.uk, or contact us now and one of our team will be in touch within 24 hours.
Common Questions
What customers ask most before choosing this. The full FAQ is one click away.
-
How do I know what which Air Knife blower I require?
The blower that you need will depend on your Air Knife requirements, including length, gap settings and desired effect. Please consult SolvAir for advice.
If you already know your Air Knife length, gap and operating pressure, our energy savings calculator will suggest a suitable blower and show the running cost.
-
How many times can I start and stop the blower? Can I run the blower 24/7?
Blowers are well-suited to 24/7 operation, and start/stops should be ideally kept to a minimum.
-
What happens if I need a replacement or blower to be repaired?
SolvAir maintain a stock of replacement blower heads, which are available on a 24 hour service.
-
Is on-site service and support available?
Yes – we offer comprehensive installation services and site audits for existing, and new, customers.
-
If I need replacement parts, what is the availability?
Replacement parts are typically supplied within 24 to 48 hours on working days.
We constantly maintain an onsite stock of all frequently needed parts, including items needed for services such as air filters and belts.
-
How much maintenance does an Air Knife System/blower require?
Our blowers require low maintenance, with only periodic air filter and drive belt replacement being required to maintain the 3 year warranty.
Benefits of working with SolvAir
Better line performance and lower running costs, backed by an industry-leading warranty.
-
3 Year Warranty
Industry-leading 3 year warranty is included as standard on all our energy-efficient, enhanced performance, cost-saving Air Knife Blowers.
-
100% Performance Guarantee
We offer a 100% Performance Guarantee for all SolvAir Air Knife Systems. This means that you can be sure your System is running to the highest performance.
-
80% Less Energy
Our Air Knife Systems use around 80% less energy than compressed air, and typically cost around 33% less to run than competing centrifugal blower systems. Calculate your own savings.
-
Leasing Available
SolvAir offers flexible equipment leasing in partnership with Shire Leasing, helping customers access high-performance systems without large upfront costs.
Air Knife Blower System Add-On Products
Our blowers come with a range of add-ons to enhance performance no matter the size or complexity of your manufacturing process. Please view the links below for more information on our add-on ranges.
Blower Controls
The Integrated Air Control (IAC) is a Variable Frequency Drive (VFD) that provides simple and accurate blower control, allowing you to adjust the performance to suit a range of products.
Blower Filters
Blower Inlet Filters are integral to ensuring your blower is protected from contamination, which can be very harmful and can reduce blower life. With Inlet Filters and a outer washable mesh.
Blower Enclosures
Constructed for a wide range of Industrial Applications, our robust blower enclosures offer extended life for your blowers resulting from operating within a protected environment.
