Energy Savings Calculator
There are two ways to work out your saving, depending on what you already know. Size a blower from your own Air Knife specification, or price the compressed air you already run. Both use published figures: SolvAir’s per-model blower data and the compressor manufacturers’ own.Air Knife selection
Sized on our standard Air Knife specification: a 1.4mm slot gap at 140 mbar, which uses 7.2 m³/hr per cm of Air Knife.
Operating schedule
3,120 running hours per year 12 h × 5 days × 52 weeks

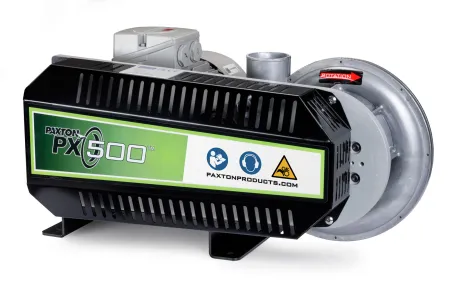

Powered by PX500 4 kW
each
1 × 600 mm of Air Knife at 140 mbar needs 432 m³/hr.
Chosen on its published rating of 680 m³/hr at 125 mbar. Indicative only: an engineer confirms the final specification. See the PX blower selection chart
A system this size is designed around your line rather than picked from a range, so the arrangement shown here is the arithmetic, not the proposal.
View the PX500
Your annual savings
£12,558
1 × 600 mm of Air Knife · 3,120 running hours a year · £0.25/kWh
- 5.0×cheaper to run
- £4.03saved every running hour
- £87,906saved over seven years
How it adds up over 7 years
- £12,558 Year 1
- £25,116 Year 2
- £37,674 Year 3
- £50,232 Year 4
- £62,790 Year 5
- £75,348 Year 6
- £87,906 Year 7
Years 1–3 are covered by our 3 year warranty. Systems routinely run far longer: many well-maintained SolvAir blowers are still in operation with clients after more than 20 years.
Show the figures: per hour, day, week and year
| Cost | Compressed air | SolvAir blower | You save |
|---|---|---|---|
| Per running hour | £5.03 | £1.00 | £4.03 |
| Per day (12 h) | £60.30 | £12.00 | £48.30 |
| Per week (5 days) | £301.50 | £60.00 | £241.50 |
| Per year | £15,678 | £3,120 | £12,558 |
| Over seven years | £109,746 | £21,840 | £87,906 |
Show the energy breakdown: power drawn and how it is worked out
Power drawn for the same Air Knives
Step by step
- Air Knives on the line: 1 × 600 mm, i.e. 60 cm in total.
- Air they need at 140 mbar:
60 cm × 7.2 m³/hr per cm = 432 m³/hr. - Blower sized on that duty: PX500 at 4 kW, chosen on its published 680 m³/hr at 125 mbar.
- The same knives on compressed air:
60 cm × 3.35 m³/hr per cm = 201 m³/hrat 6.9 bar. - Compressor power for that:
201 × 0.1 kW = 20.1 kW. - Running hours:
12 h × 5 days × 52 weeks = 3,120 hours. - At £0.25/kWh:
£15,678against£3,120, saving £12,558 a year.
Cumulative figures assume today's rate with no price rises. Sources: the 3.35 m³/hr per cm figure is published on Air Knife consumption; the per-model blower ratings come from SolvAir's own Technical Selection Chart; the 0.1 kW per m³/hr factor is rounded down from three compressor data sheets measuring 0.107, 0.113 and 0.114.
Your compressed air
Operating schedule
3,120 running hours per year 12 h × 5 days × 52 weeks
Your annual savings
£42,799 – £58,376
84 kW of compressed air · 3,120 running hours a year · £0.25/kWh
- 2.9–9.4×cheaper to run
- £13.72minimum saved every running hour
- £299,594minimum saved over seven years
This is a range on purpose. Knowing what your compressor draws does not tell us what job it is doing, and the saving depends entirely on that. On our own installed jobs the gap runs from about 2.9× , a blow-off line replaced with performance headroom, to 9.4× for an Air Knife moved off compressed air. We will not narrow it without seeing the application.
How it adds up over 7 years
- £42,799 Year 1
- £85,598 Year 2
- £128,397 Year 3
- £171,197 Year 4
- £213,996 Year 5
- £256,795 Year 6
- £299,594 Year 7
The solid column is the conservative end of the range; the lighter cap is the best case. The figure above each column is the conservative one.
Years 1–3 are covered by our 3 year warranty. Systems routinely run far longer: many well-maintained SolvAir blowers are still in operation with clients after more than 20 years.
Show the figures: per hour, day, week and year
| Cost | Compressed air | SolvAir blower | You save |
|---|---|---|---|
| Per running hour | £20.94 | £2.23 – £7.22 | £13.72 – £18.71 |
| Per day (12 h) | £251.25 | £26.73 – £86.64 | £164.61 – £224.52 |
| Per week (5 days) | £1,256.25 | £133.64 – £433.19 | £823.06 – £1,122.61 |
| Per year | £65,325 | £6,949 – £22,526 | £42,799 – £58,376 |
| Over seven years | £457,275 | £48,646 – £157,681 | £299,594 – £408,629 |
Show the energy breakdown: power drawn and how it is worked out
Step by step
- What you told us: 83.8 kW of compressor power.
- Running hours:
12 h × 5 days × 52 weeks = 3,120 hours. - What that compressed air costs:
83.8 kW × 3,120 h × £0.25 = £65,325 a year. - A blower system on the same duty runs 2.9× to 9.4× cheaper:
£6,949 to £22,526 a year. - So the saving is £42,799 to £58,376 a year: a range, not a quotation.
Cumulative figures assume today's rate with no price rises. The 0.1 kW per m³/hr factor used to turn air consumption into compressor power is rounded down from three compressor data sheets measuring 0.107, 0.113 and 0.114. The 2.9× to 9.4× span is SolvAir's own installed-job record, not a manufacturer claim.
What next?
Talk these figures through with an engineer, or pass them on to whoever signs them off.
Speak to an engineer
Send us these figures and we will confirm the specification, price it and work out your payback period, as part of a free consultation.
Talk to a specialistPrint these figures
A one-page summary of what you entered, what it costs to run, and the saving, ready to take into a meeting.
Share these figures
Send the link with your settings built in, so whoever opens it sees exactly these numbers, on the same tab you are on.
See it on a real line
Installed jobs with their measured figures: the same comparison, on lines already running.
