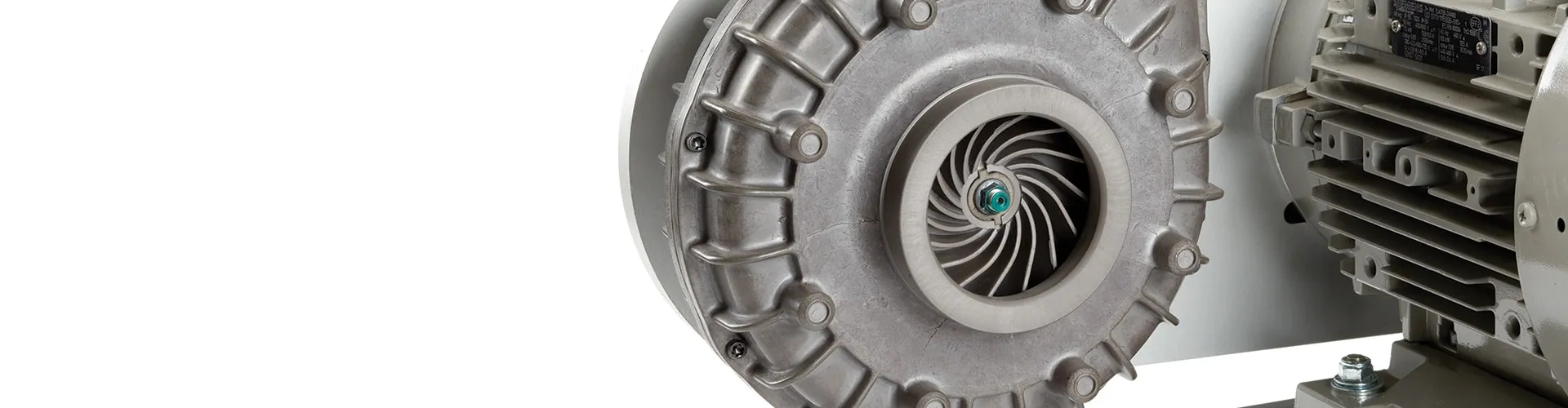

XT Series Centrifugal Blower
Highest efficiency blowers for drying and process air applications of all types.
PX Series replaces the XT Series blowers
XT Series Blower – This has now been replaced by the PX Series 200 to 500 range of blowers.
XT Series Blower

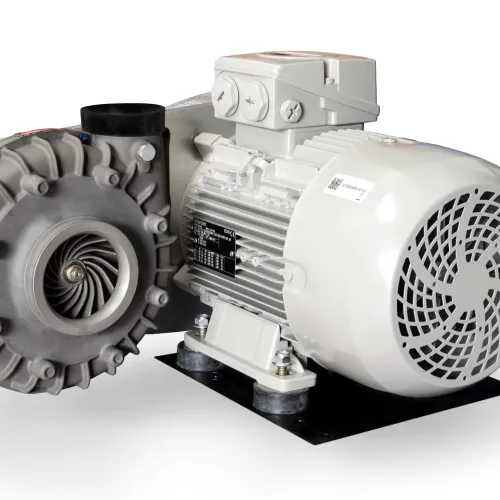

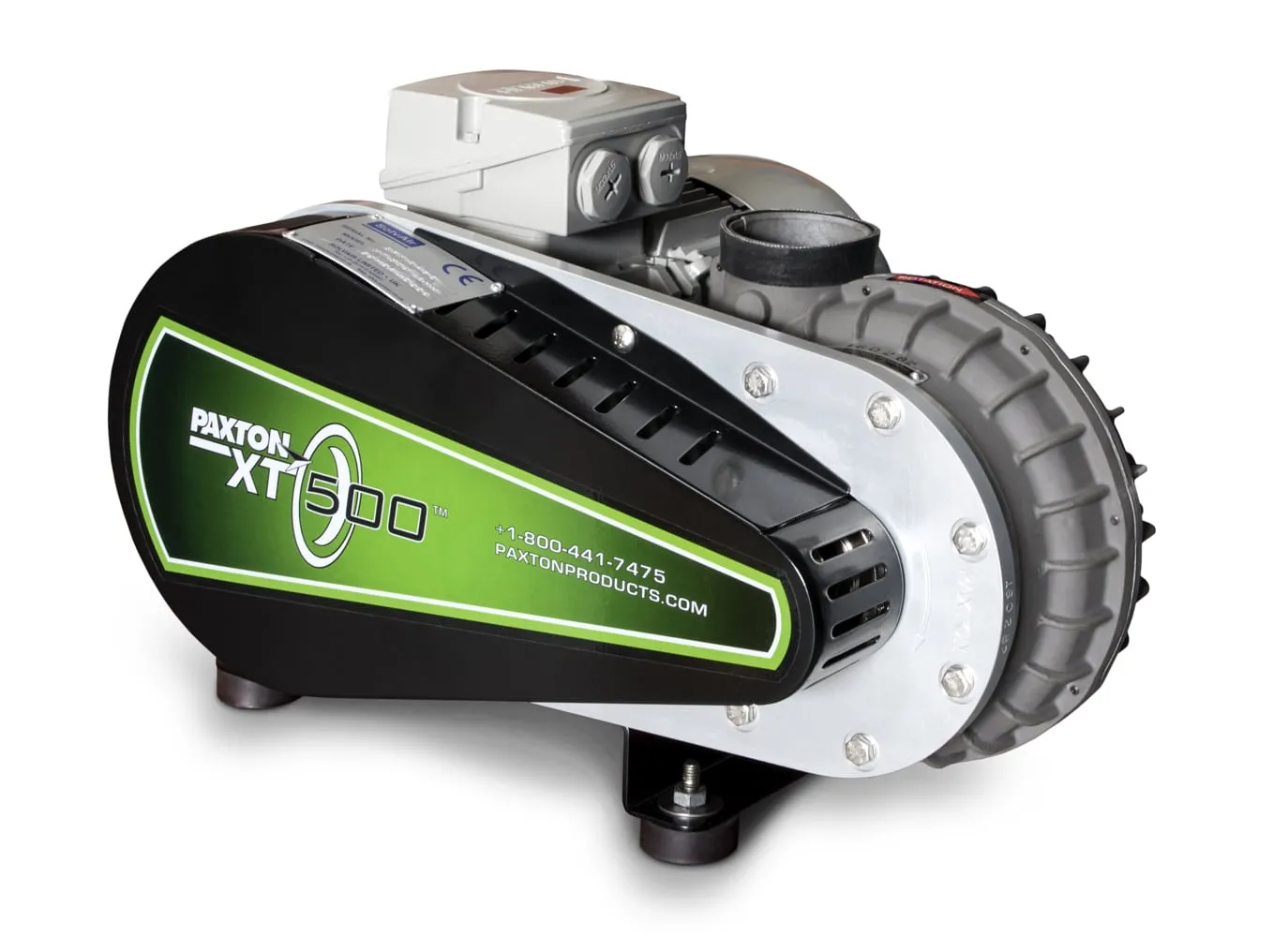

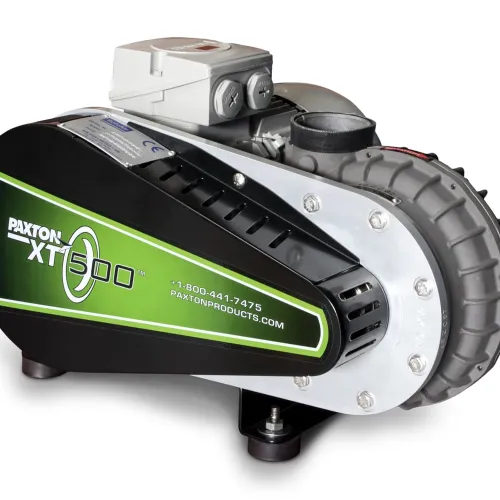

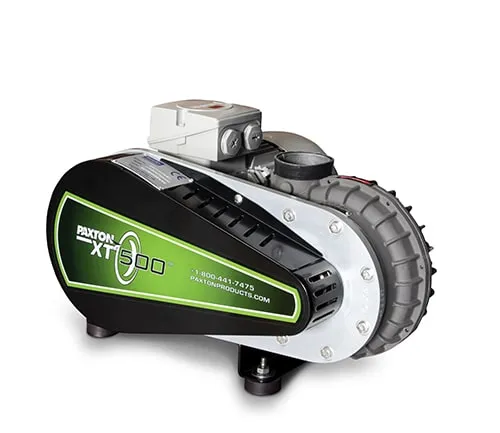

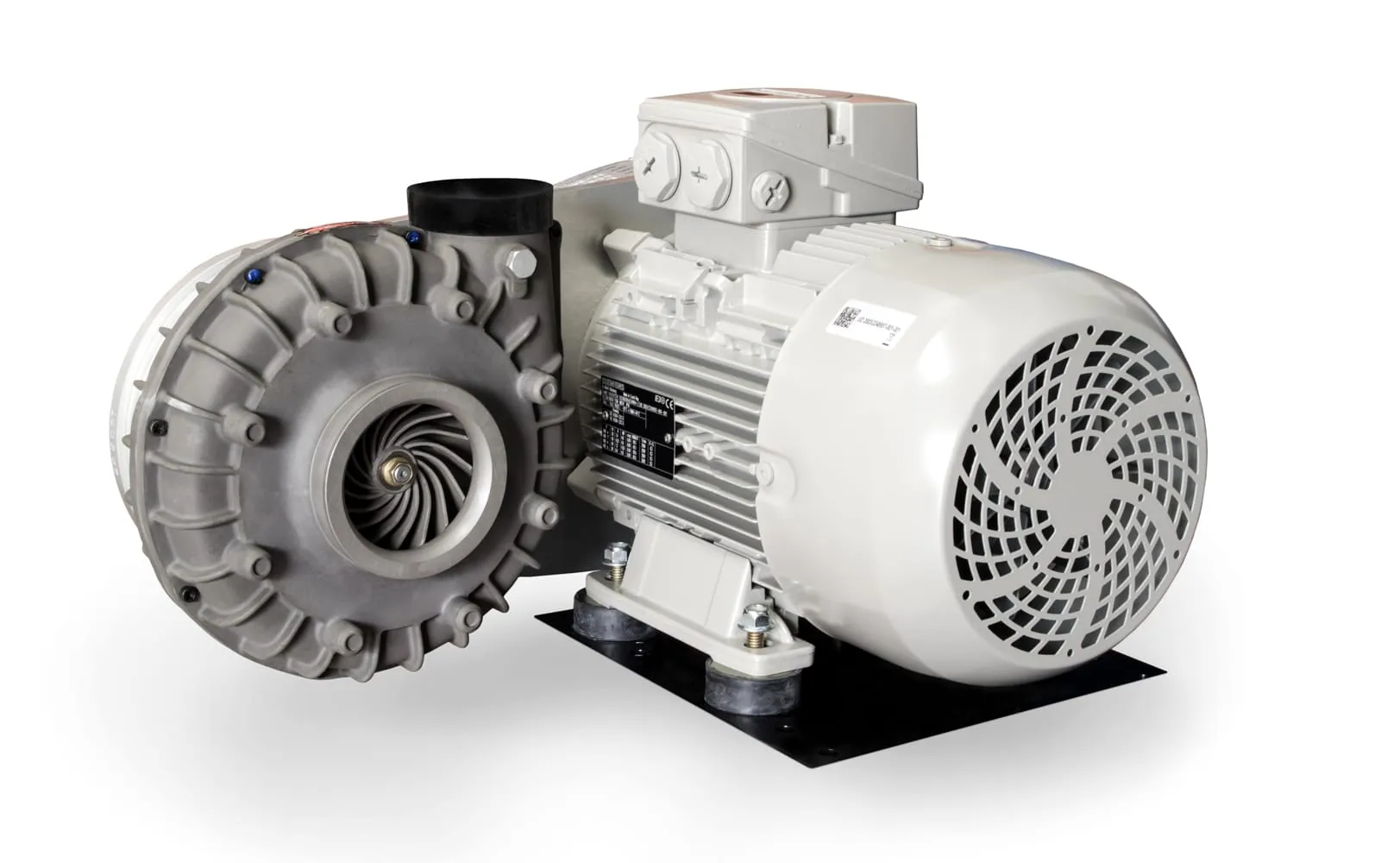

The XT Series Blowers are Paxton’s highest efficiency units for drying and process air applications of all types. XT Series Blowers are available in 2.2kw and 4kw models.
The XT-300 is Paxton’s smallest blower, and provides the foundation for the PowerDry™ System.
The XT Series features an auto-tension belt drive designed specifically to enhance the performance, efficiency and service life of the motors. As the motors are smaller than in other models, the energy requirements for the XT Series is far less than that of a typical centrifugal blower.
Download XT Series PDF
Key XT Series Centrifugal Blower Features
3-Year Warranty
Industry-leading 3-Year warranty on all our blowers as standard. No blower leaves the factory without meeting our high standards, to ensure we are delivering the finest centrifugal blower available.
Longer Service Life
Every Paxton Centrifugal Blower is constructed with the utmost attention to detail using the highest quality parts, held to strict tolerances.
Lower Maintenance
To achieve comparable output, the less efficient competing blowers require 10-25% higher rpm. This means substantially higher wear, maintenance, energy consumption, noise and overall cost compared to Paxton.XT Series Performance Specifications

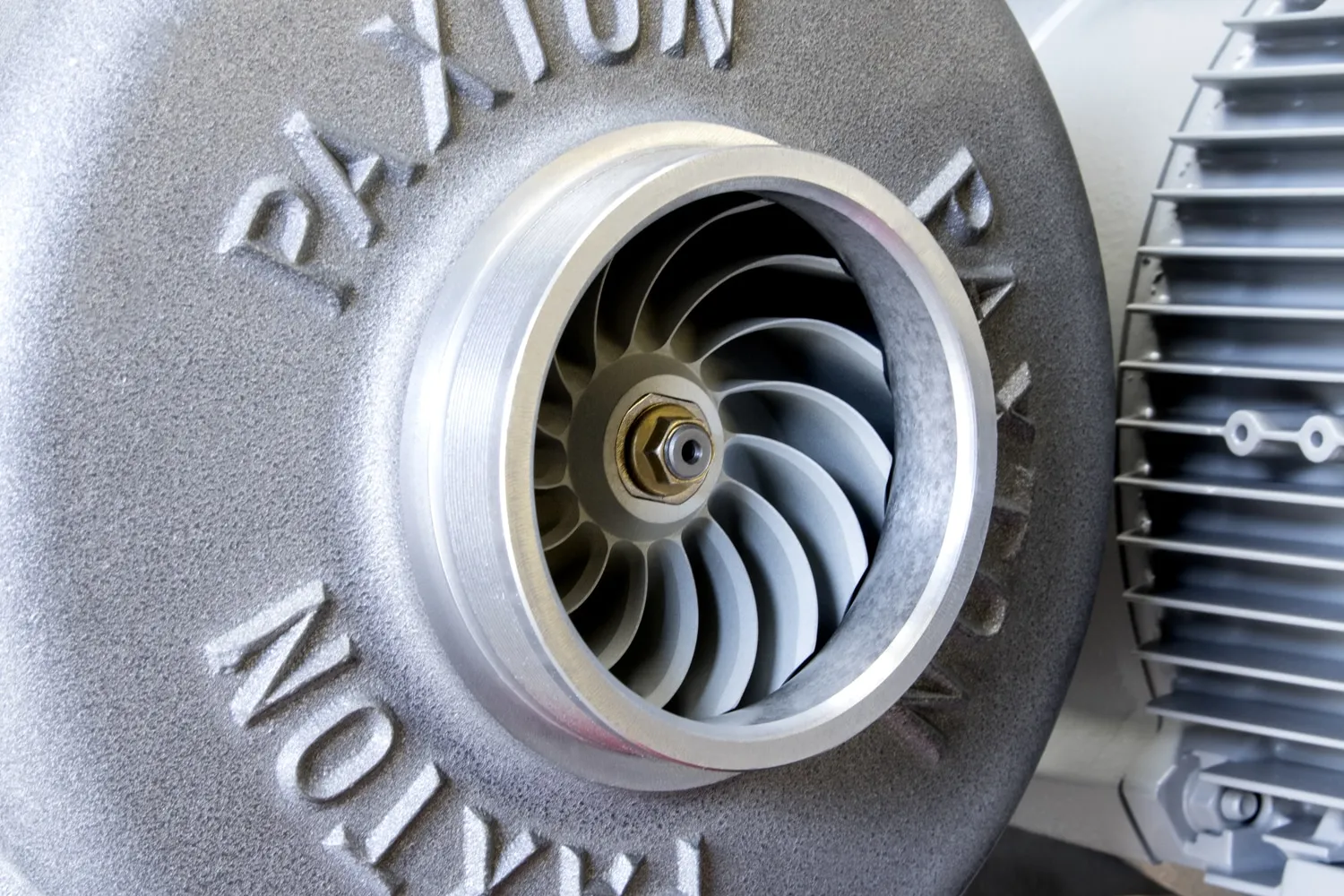

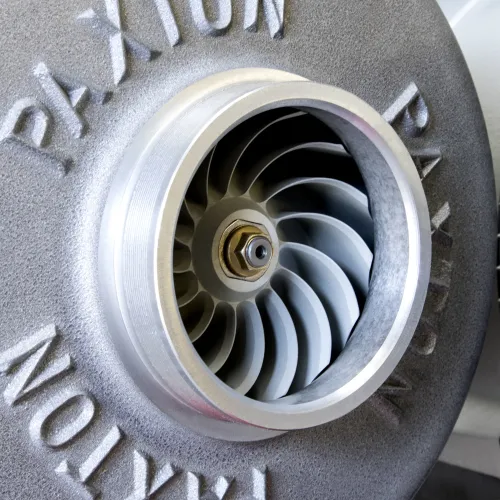

| Temperature Range, Ambient: Up to 40°C ambient | Impeller: Machined from SAE 355 aluminium casting |
| Warranty: Three year warranty |
| XT-300 | XT-500 | |
|---|---|---|
| Power | 2.2kw | 4kw |
| Frequency | 50Hz | 50Hz |
| Voltage | High 400 | High 400 |
| Frame Size | 90L | 112M |
| Weight | 32kg | 63kg |
| Maximum FLOW Output | 474 m³/hr @ 75 mbar | 1019 m³/hr @ 16 mbar |
| Maximum POWER Output | 212 m³/hr @ 139 mbar | 255 m³/hr @ 148 mbar |
| Maximum Efficiency | 52% | 60% |
| Intake Air Temperature | Up to 49°C Intake as Standard | Up to 49°C Intake as Standard
Up to 162°C Intake with liquid cooled bearing carriers |

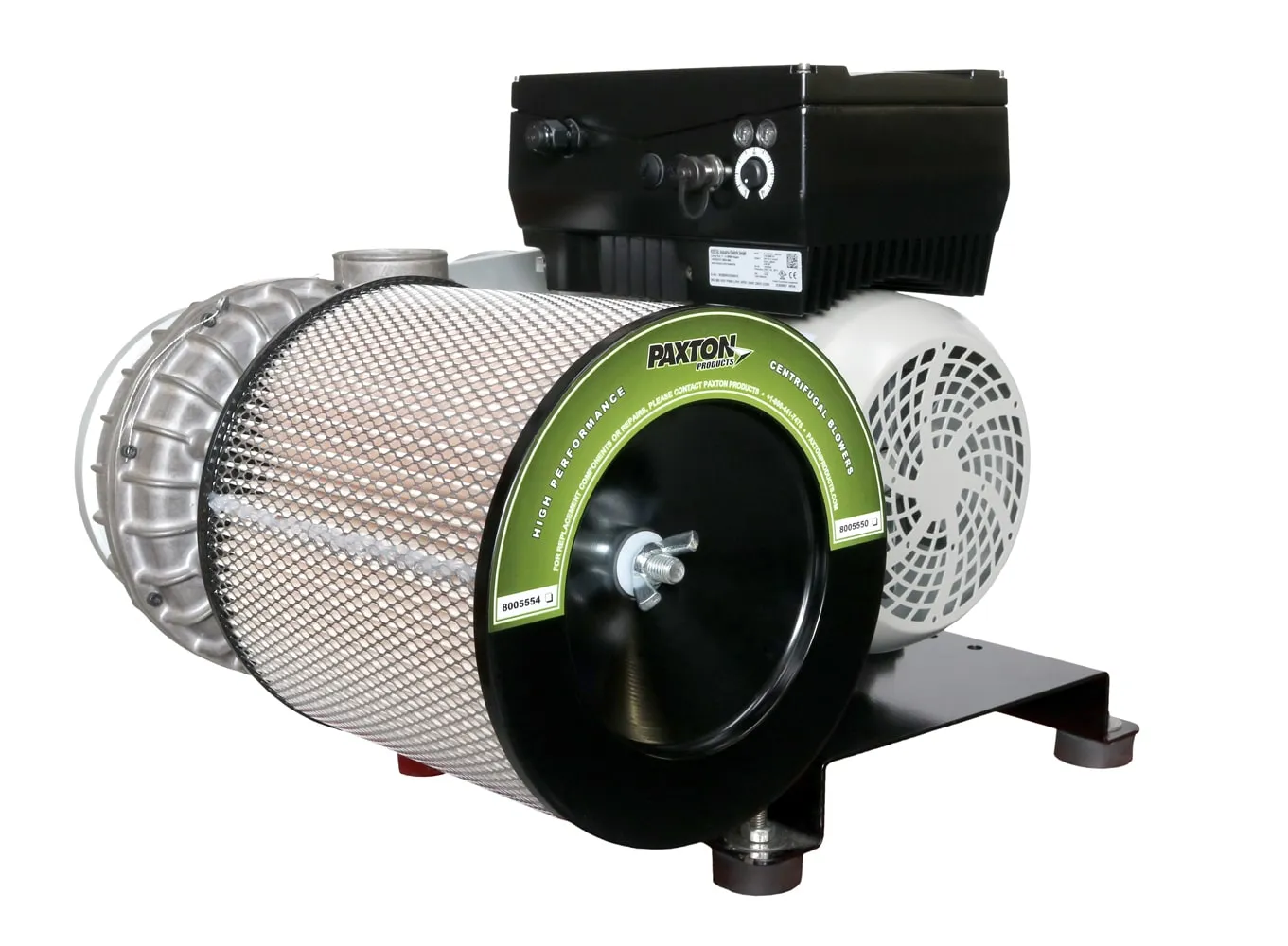

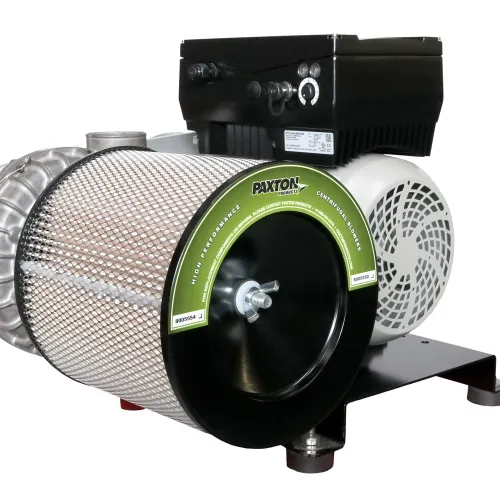

| Blower Intake Filter | Two Stage Filter and housing. 510 m³/hr. 5 Micron @ 99% Efficiency. | Two Stage Filter with Silencer and housing. 1380 m³/hr. 5 Micron @ 99% Efficiency. |
Options:
- Available in several frame sizes and mounting configurations
- Both 60 Hz and 50 Hz systems
- Water cooled bearing housing for high T (>177 deg C) operation
- Anti-corrosive coatings
- Wash down capabilities
- Inlet HEPA filtration
- Exhauster (Vacuum) operation
Common Questions
What customers ask most before choosing this. The full FAQ is one click away.
-
How do I know what which Air Knife blower I require?
The blower that you need will depend on your Air Knife requirements, including length, gap settings and desired effect. Please consult SolvAir for advice.
If you already know your Air Knife length, gap and operating pressure, our energy savings calculator will suggest a suitable blower and show the running cost.
-
How many times can I start and stop the blower? Can I run the blower 24/7?
Blowers are well-suited to 24/7 operation, and start/stops should be ideally kept to a minimum.
-
What happens if I need a replacement or blower to be repaired?
SolvAir maintain a stock of replacement blower heads, which are available on a 24 hour service.
-
Is on-site service and support available?
Yes – we offer comprehensive installation services and site audits for existing, and new, customers.
-
If I need replacement parts, what is the availability?
Replacement parts are typically supplied within 24 to 48 hours on working days.
We constantly maintain an onsite stock of all frequently needed parts, including items needed for services such as air filters and belts.
-
How much maintenance does an Air Knife System/blower require?
Our blowers require low maintenance, with only periodic air filter and drive belt replacement being required to maintain the 3 year warranty.
Benefits of working with SolvAir
Better line performance and lower running costs, backed by an industry-leading warranty.
-
3 Year Warranty
Industry-leading 3 year warranty is included as standard on all our energy-efficient, enhanced performance, cost-saving Air Knife Blowers.
-
100% Performance Guarantee
We offer a 100% Performance Guarantee for all SolvAir Air Knife Systems. This means that you can be sure your System is running to the highest performance.
-
80% Less Energy
Our Air Knife Systems use around 80% less energy than compressed air, and typically cost around 33% less to run than competing centrifugal blower systems. Calculate your own savings.
-
Leasing Available
SolvAir offers flexible equipment leasing in partnership with Shire Leasing, helping customers access high-performance systems without large upfront costs.
Speak to an XT Series specialist
To discuss blower options for your business, or for any queries on our XT blowers, please call us, email us at info@solvair.co.uk, or contact us now and one of our team will be in touch within 24 hours.
