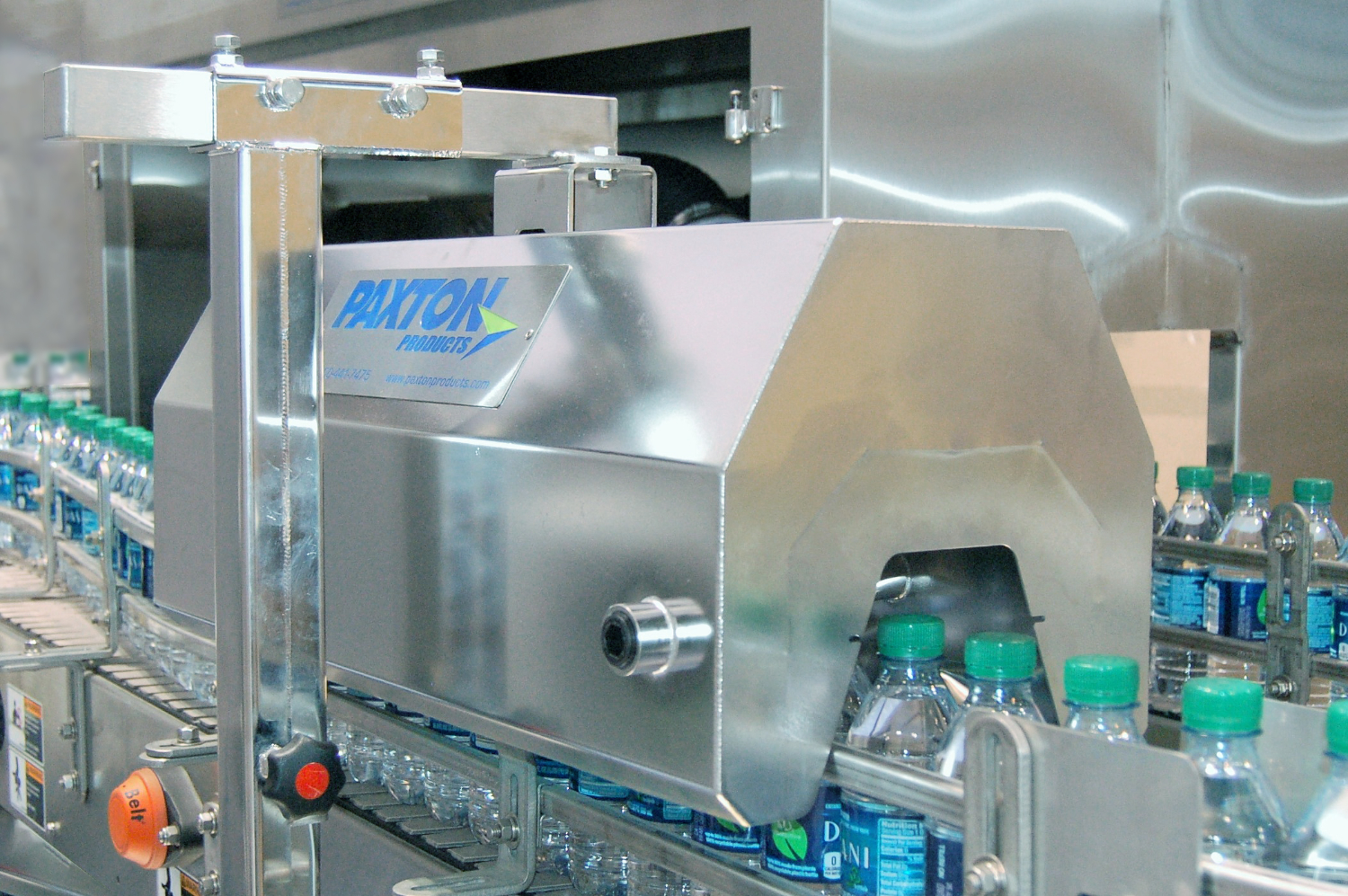

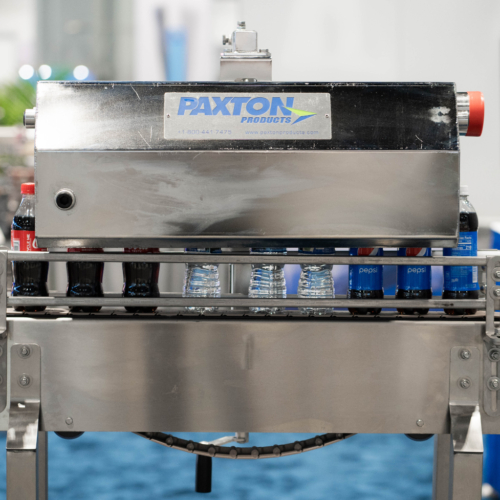

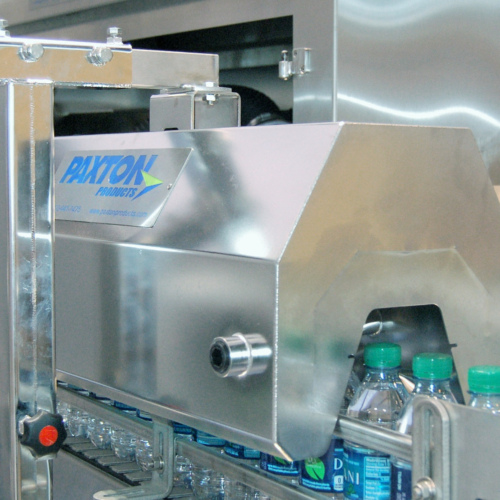

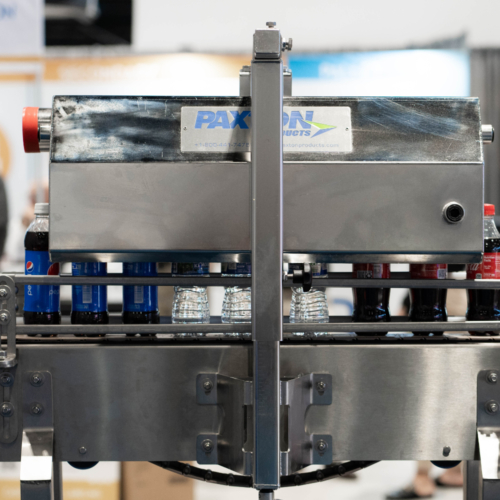

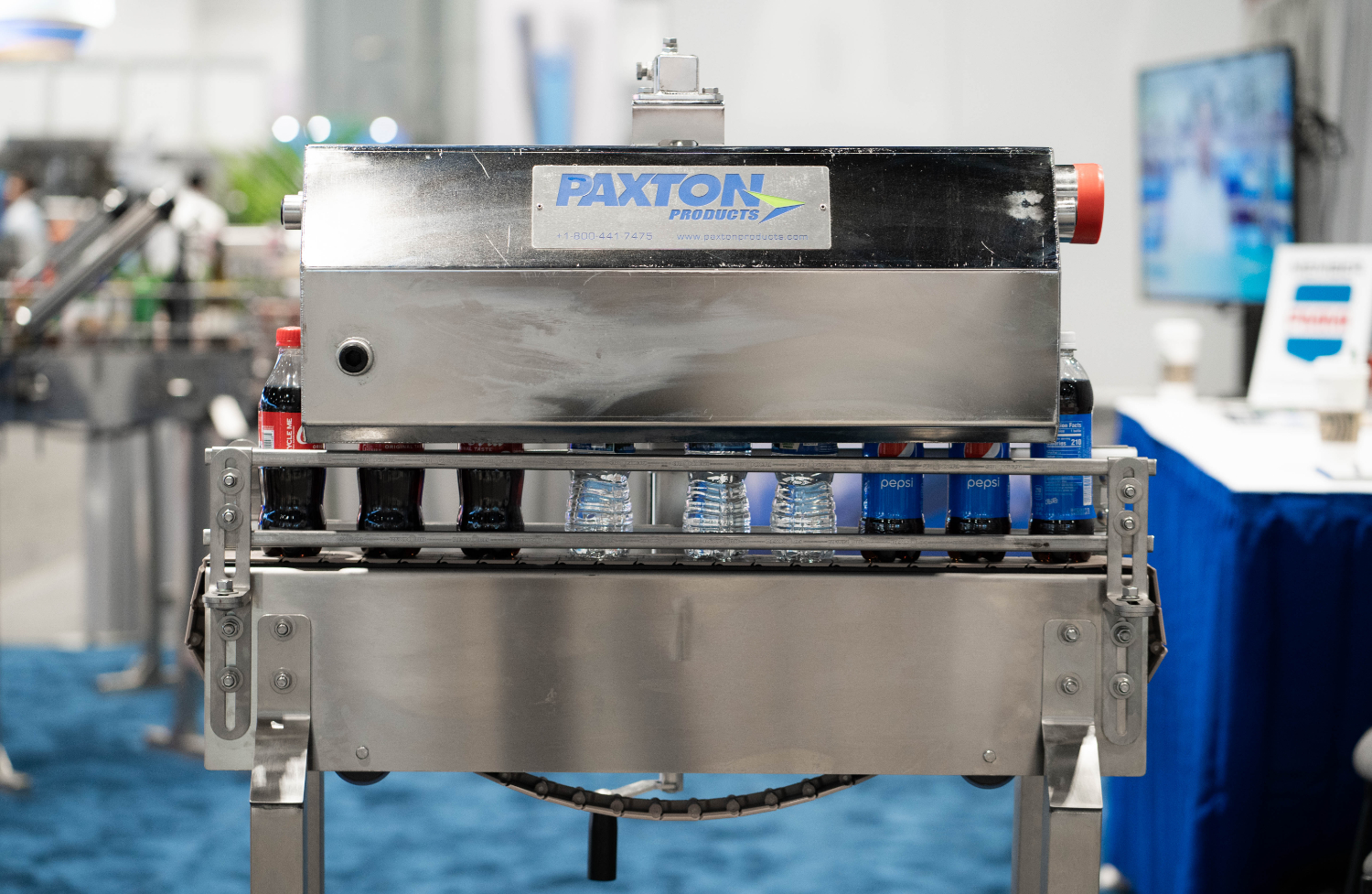

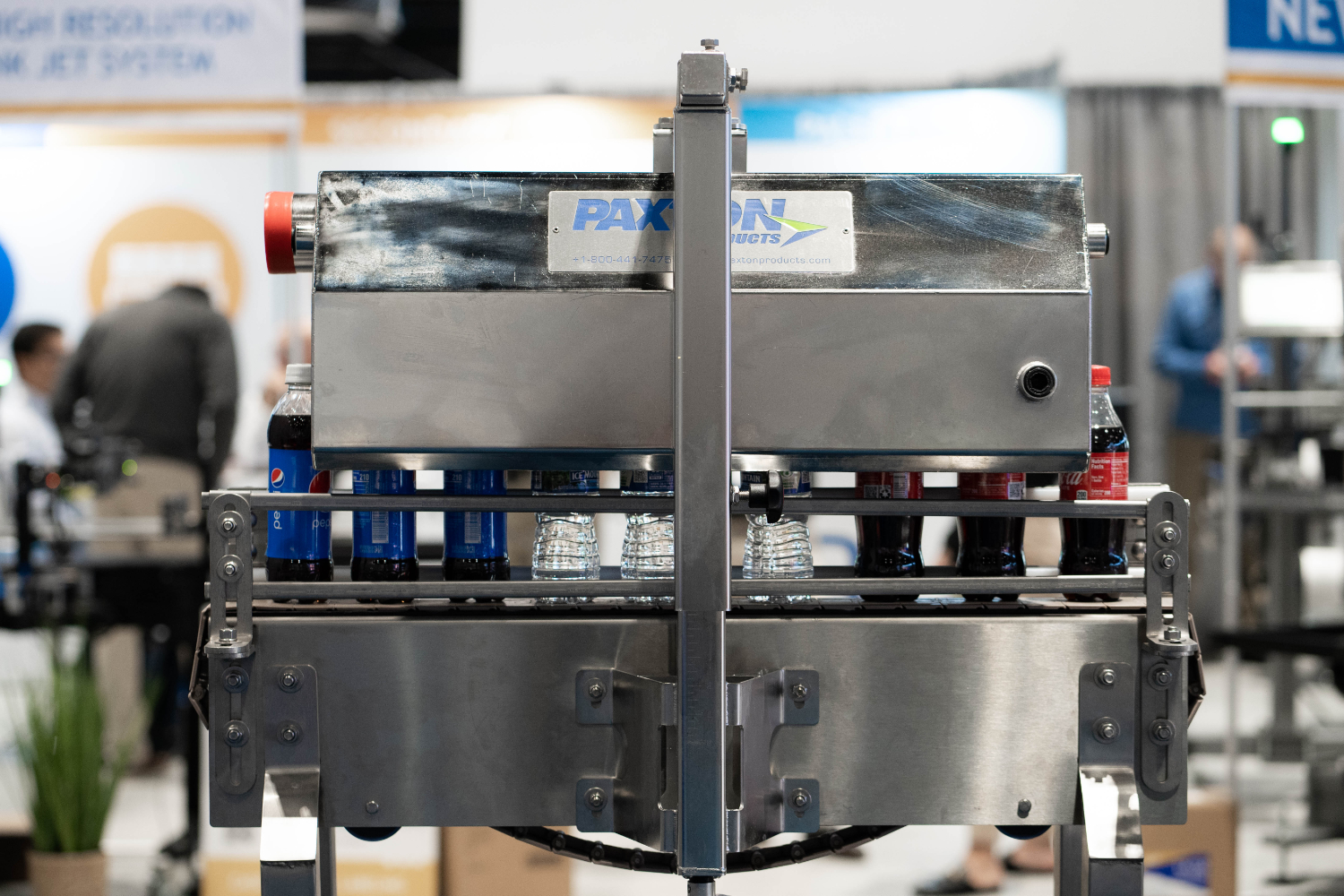

Cap Drying System

Drying technology that ensures optimal surface preparation for bottles from 240-3000ml. Delivers complete moisture removal from bottle necks and caps for superior tamper branding, crisp coding, and enhanced vision system performance.

Purpose-built for demanding production environments with stainless steel construction that withstands harsh washdown chemicals while maintaining consistent performance across all bottle formats.

Benefits:

• Maximizes vision system accuracy – complete moisture removal delivers up to 10x reduction in false rejection rates.
• Ensures perfect coding and branding results – thorough neck and cap drying delivers crisp, smear-free application.
• Consistent 24/7 performance – washdown-ready stainless construction provides long-term durability in demanding environments.
• Adapts to multiple bottle formats seamlessly – adjustable manifold accommodates 240-3000ml bottles with quick changeover capability.

Key Features:

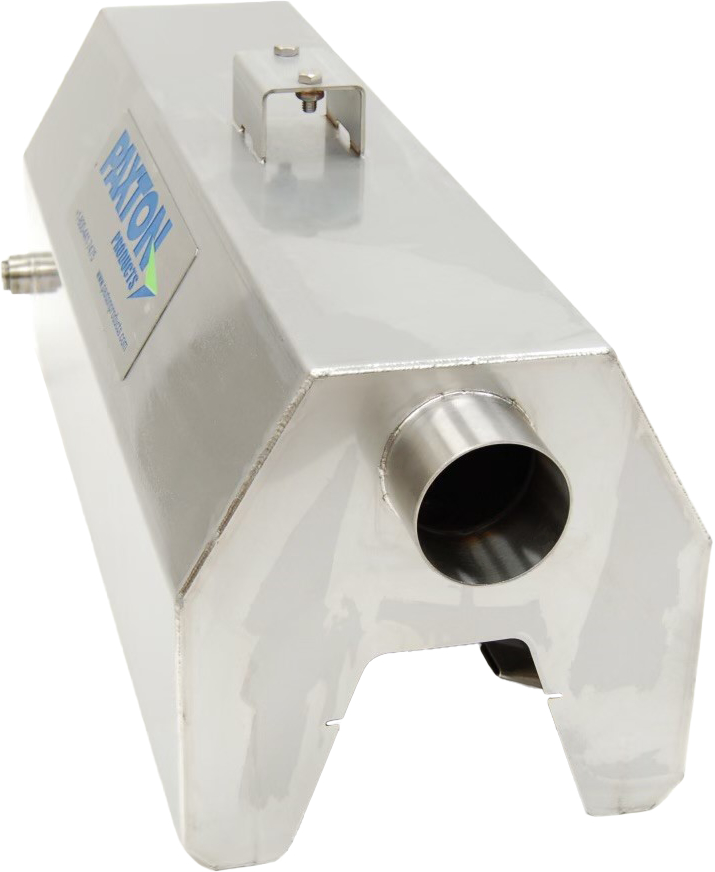

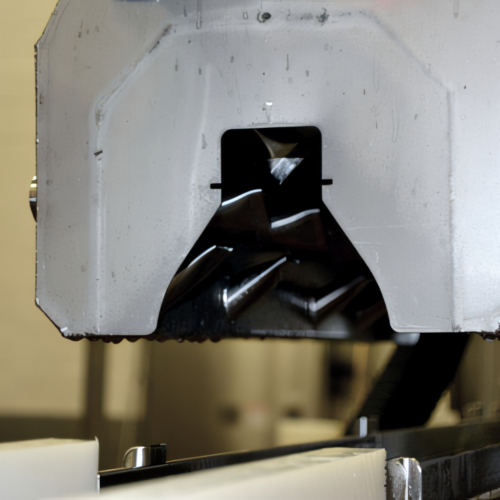

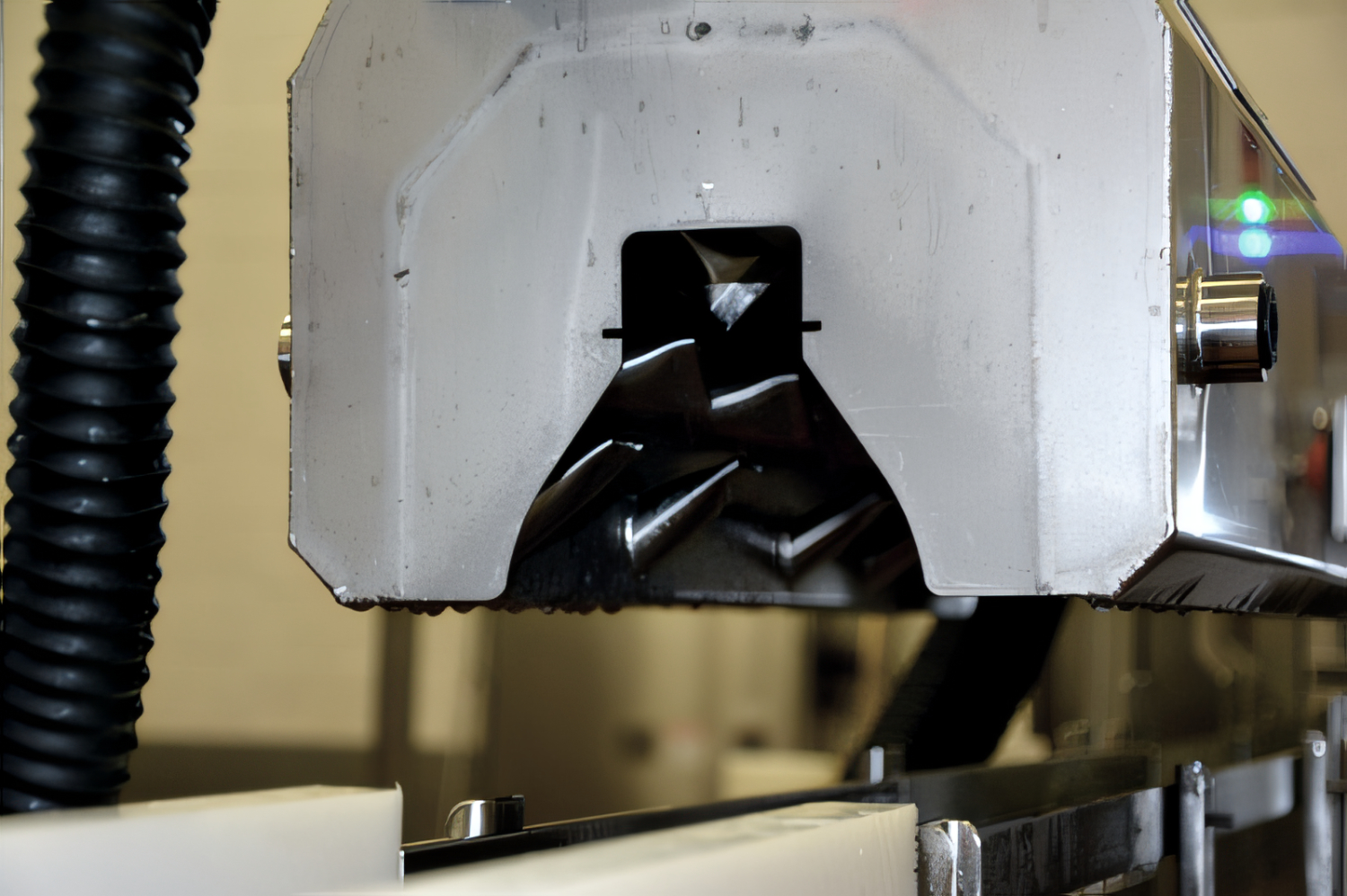

• Manifold box improves production floor safety by containing water spray
• Improves adhesion and positioning of label and tamper branding

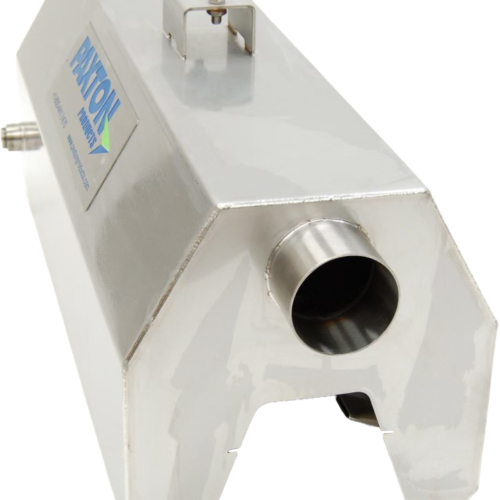

• All-in-one drying manifold simplifies installation
• Includes adjustment markings to facilitate ideal placement
• Stainless Steel construction withstands harsh detergents used in washdown areas

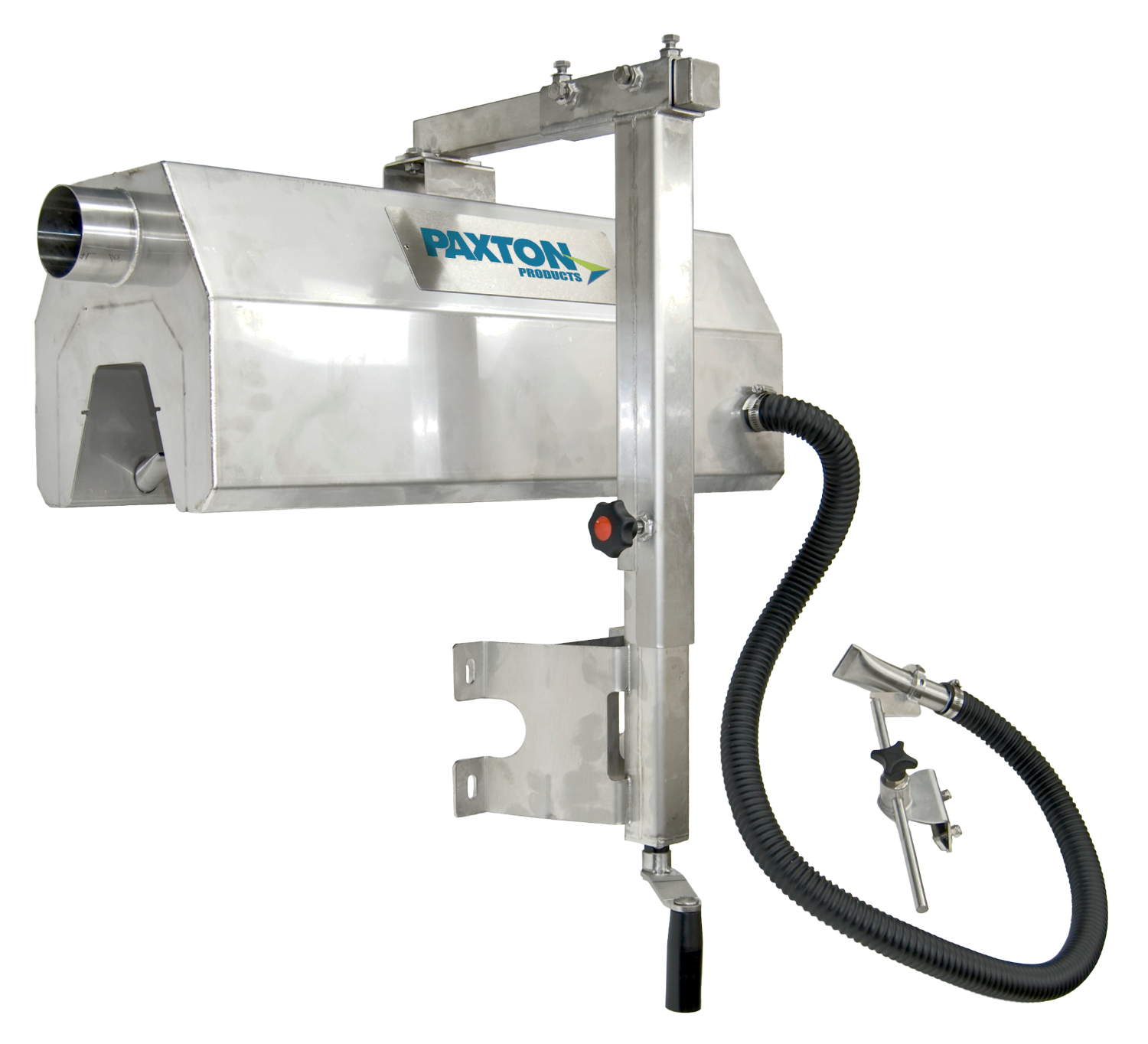

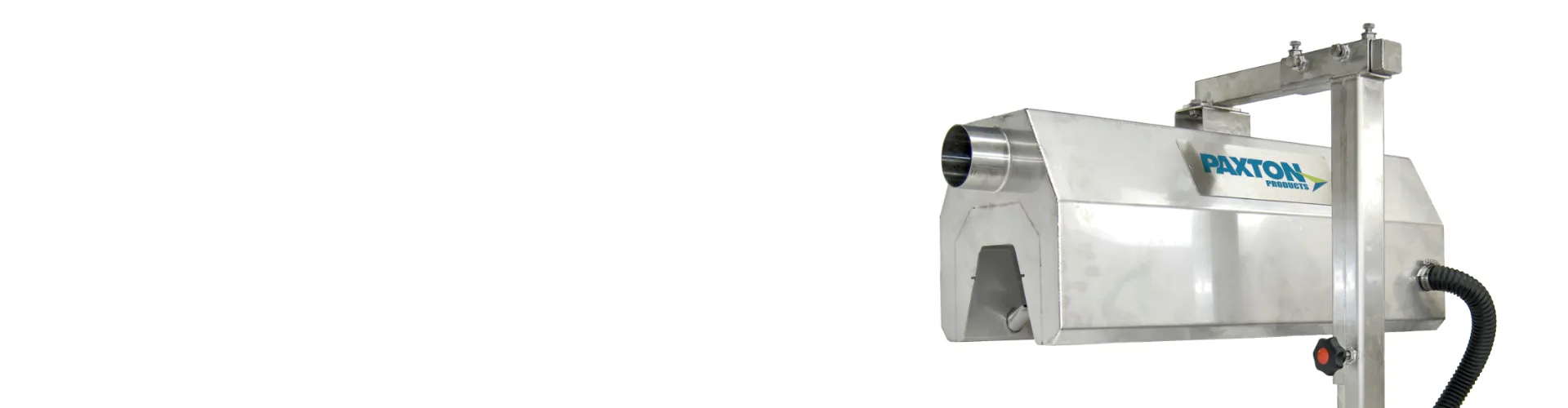

Mounting Arm:

• Integral crank for easy product changeover
• Stainless Steel Construction
• Locks in place after adjustment
• Horizontal (127 mm) and vertical (635 mm) adjustment
• At minimum height: 229 x 737 x 356 mm

Empty Container Blow-Off Attachment:

• Optional stainless steel flare nozzle and mounting bracket with 1.52 m of hose
• Increased thrust available for heavier containers
• Horizontal (25 mm) and vertical (229 mm) adjustment for nozzle mounting bracket
• 32 mm diameter nozzle with 46 mm flar
