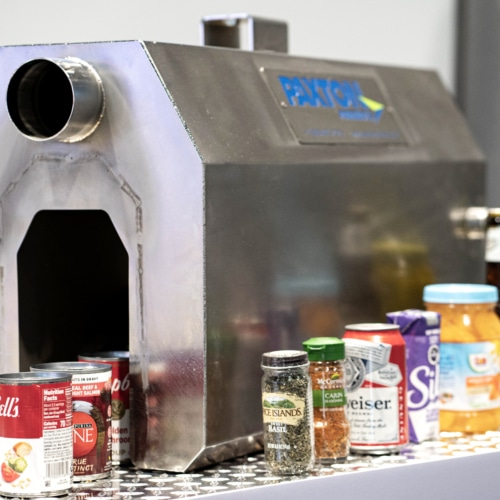

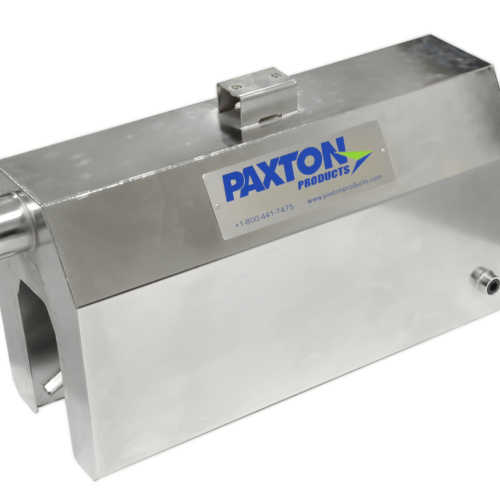

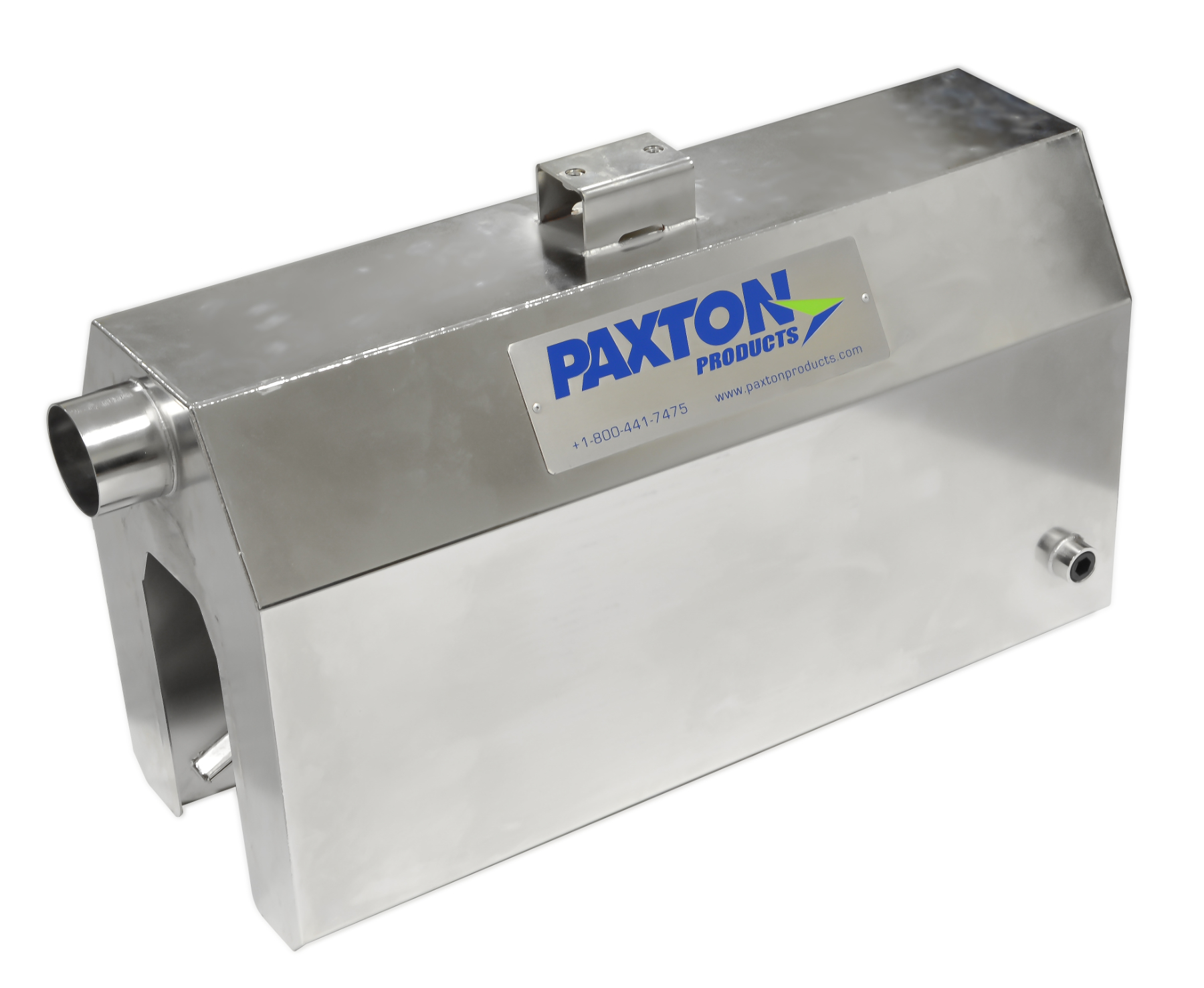

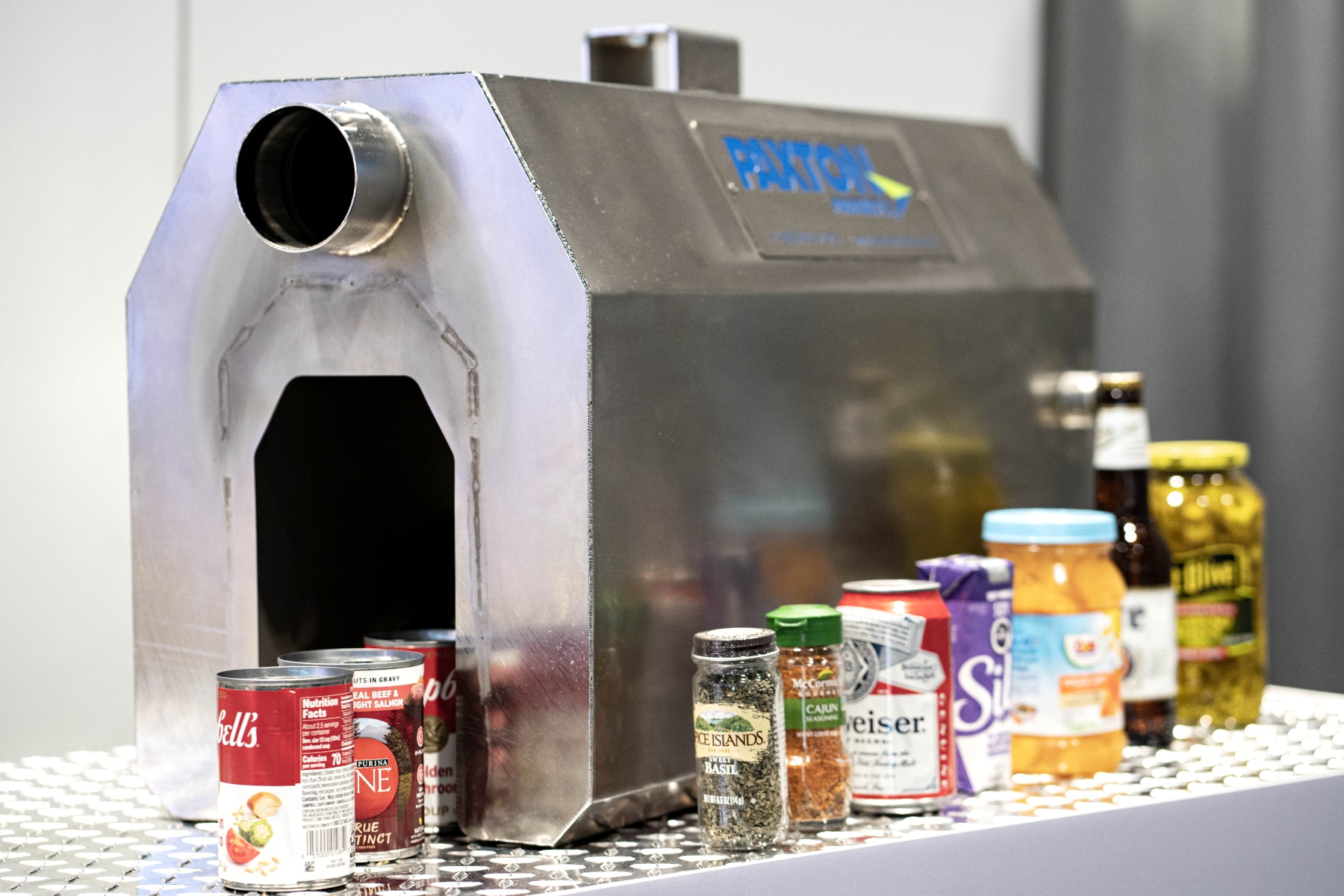

Can Drying System

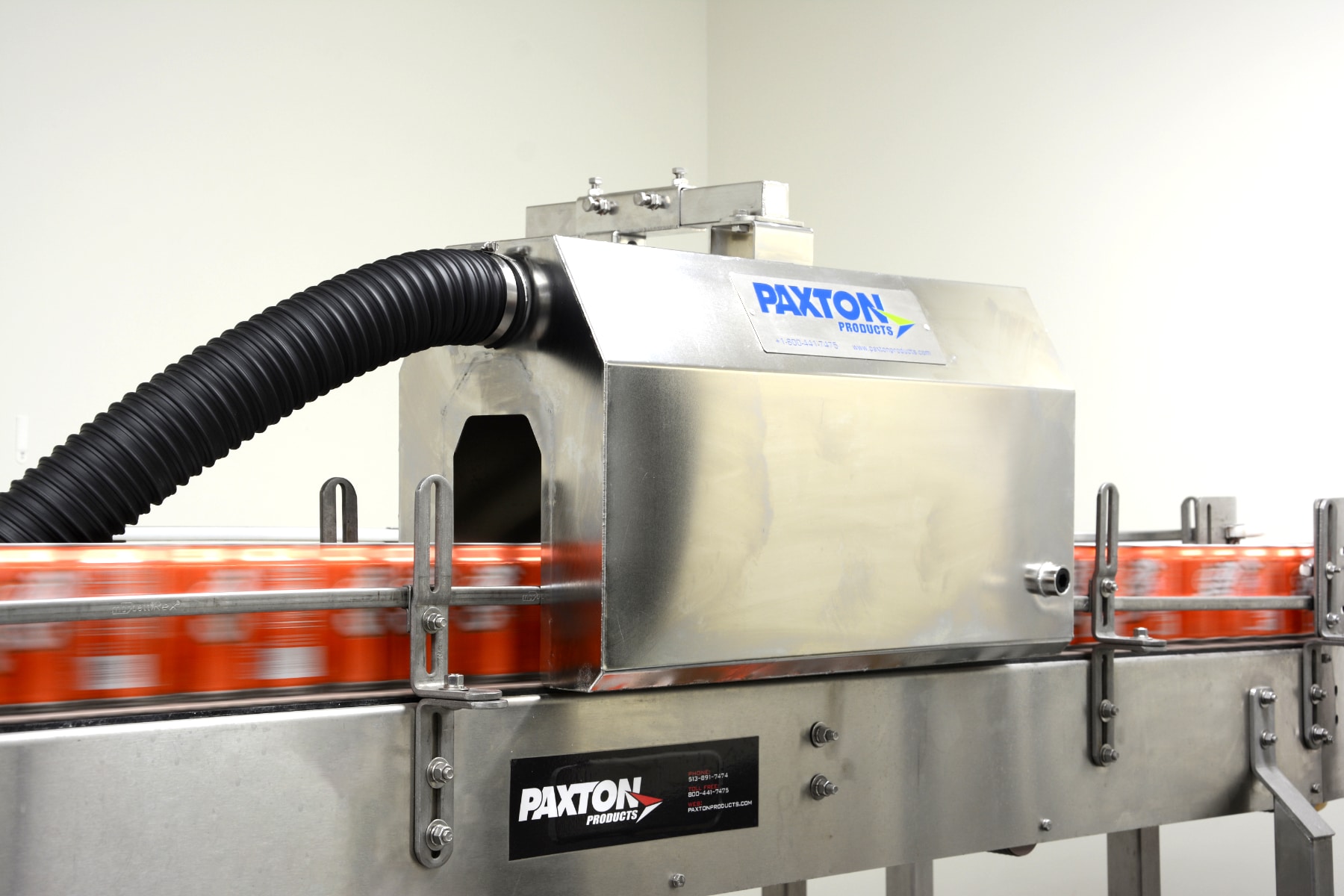

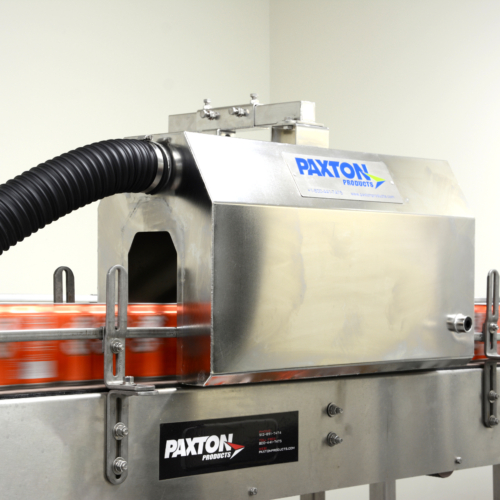

Complete drying system for 250-700ml cans delivering consistent moisture removal from can tops and sides. Designed specifically for brewery environments, it prevents coding and labelling failures that cause costly line stoppages and quality rejections.

The Stainless steel construction withstands harsh washdown chemicals while the integrated water containment improves floor safety and operational efficiency.

Benefits:

• Ensures perfect coding and labelling results – integrated manifold delivers complete moisture removal from tops and sides.
• Consistent 24/7 performance – washdown-ready stainless construction provides long-term durability in brewery environments.
• Maximizes production line efficiency – consistent drying performance maintains optimal throughput across all can sizes.
• Adapts to multiple can formats seamlessly – adjustable system accommodates 250-700ml cans with quick changeover capability.

Key Features:

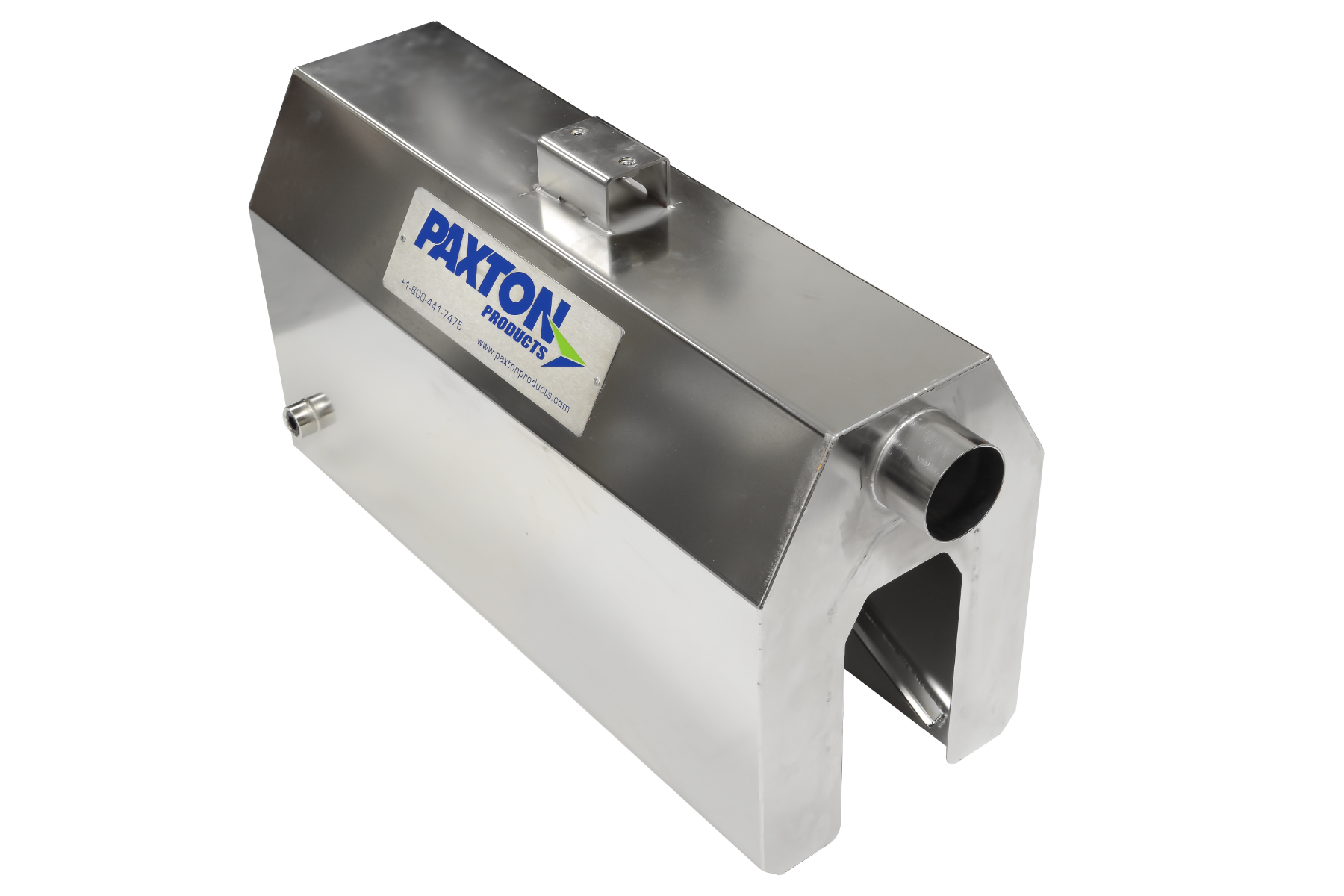

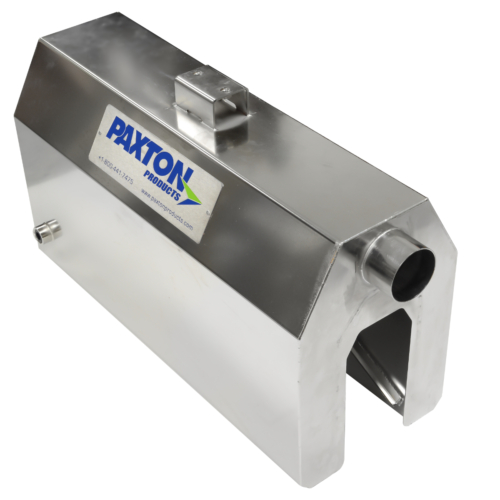

• Incorporates two Air Knives and six Nozzles into a single drying manifold
• Eliminates variability due to Air Knife positioning
• Manifold box improves production floor safety by containing water spray
• Smaller footprint than conventional Air Knife drying systems
• Includes adjustment markings to facilitate ideal placement

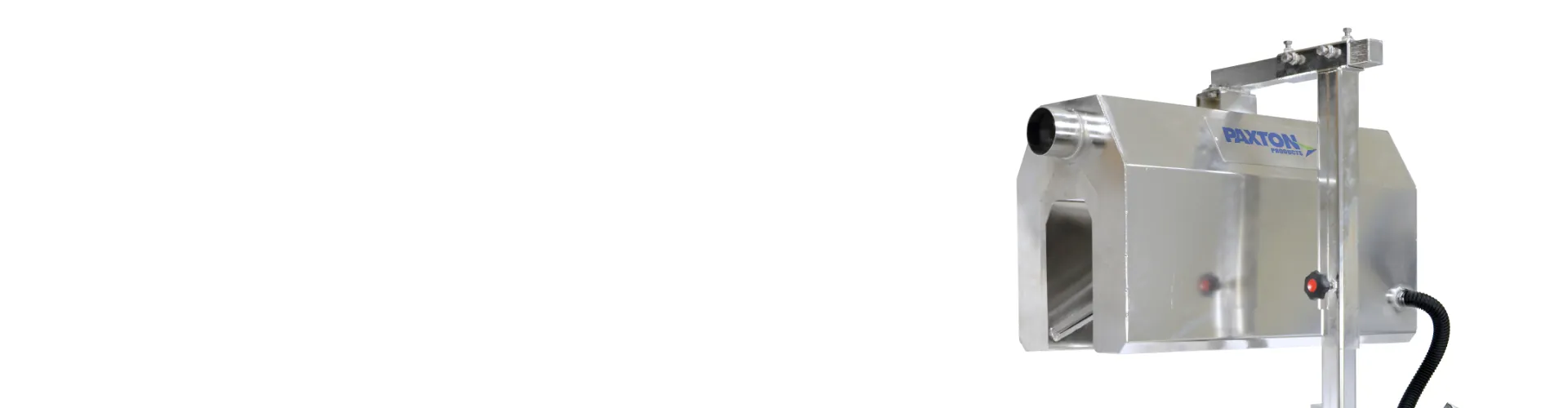

Mounting Arm:

• Integral crank for easy product changeover
• Stainless Steel Construction
• Locks in place after adjustment
• Horizontal (127 mm) and vertical (635 mm) adjustment
  At minimum height: 229 x 737 x 356 mm

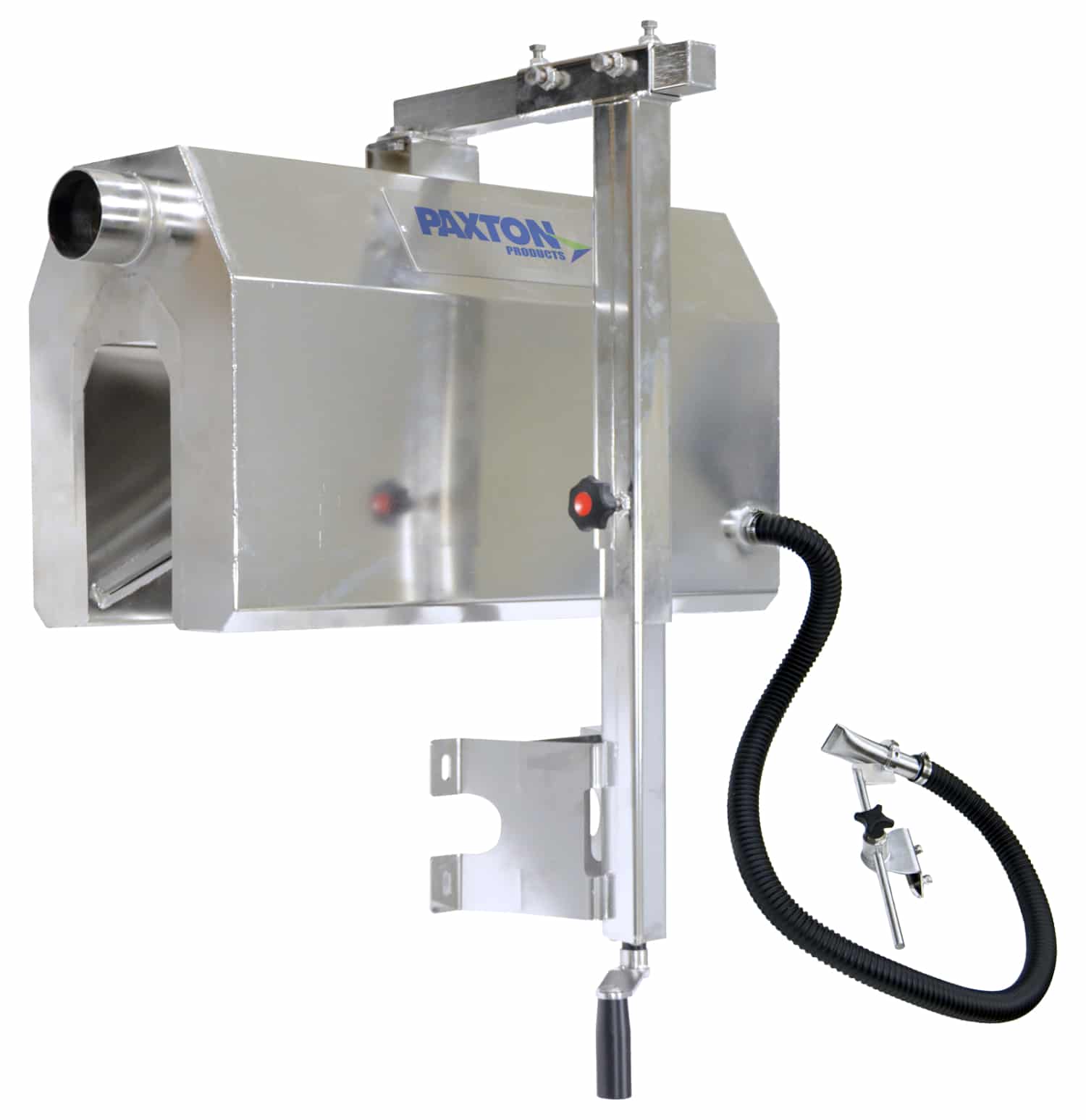

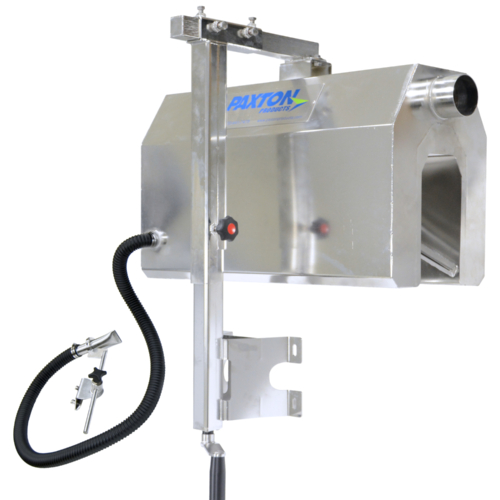

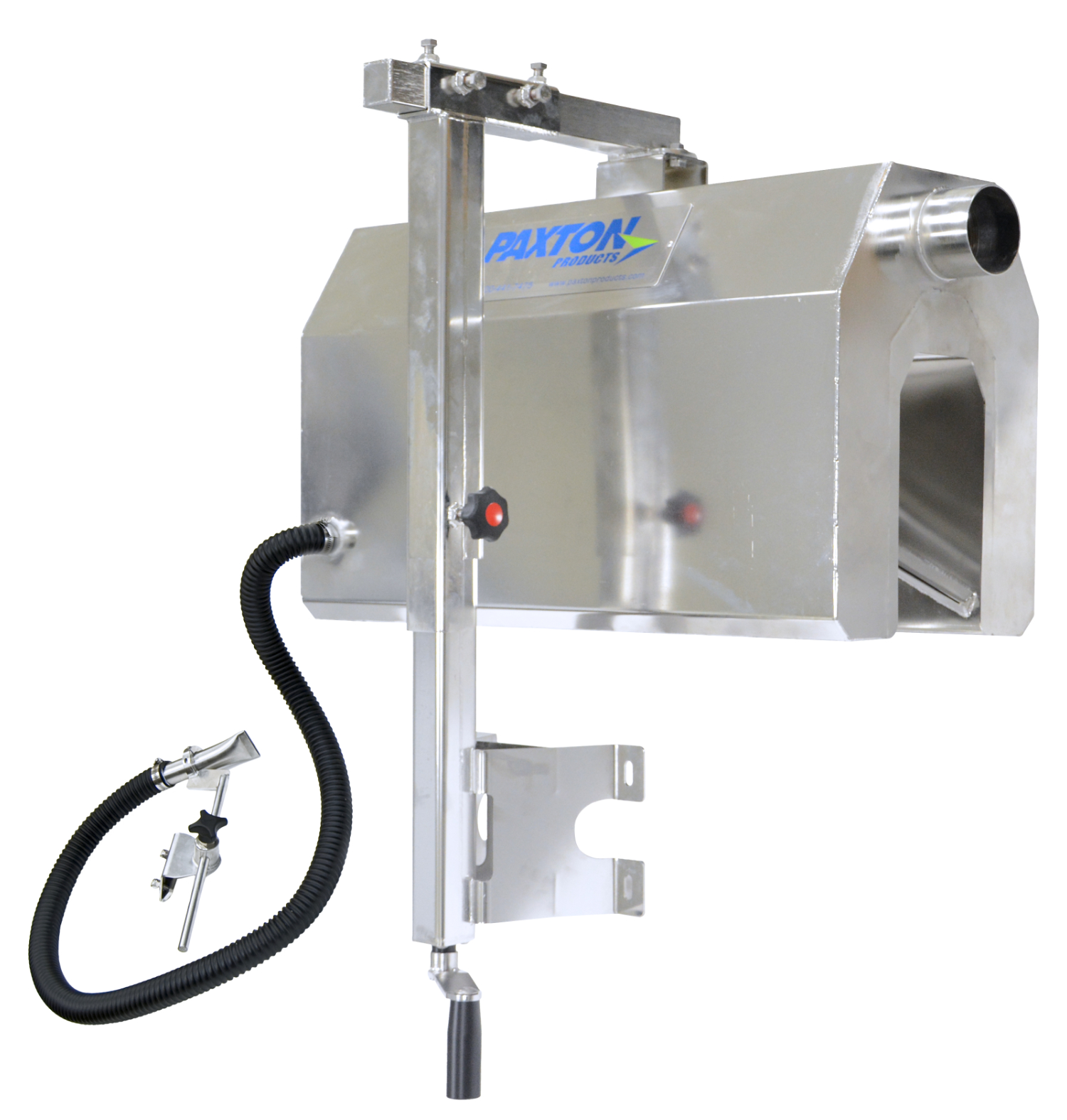

Empty Container Blow-Off Attachment:

• Optional stainless steel flare nozzle and mounting bracket with 1.52 m of hose
• Increased thrust available for heavier containers
• Horizontal (25 mm) and vertical (229 mm) adjustment for nozzle mounting bracket
• 32 mm diameter nozzle with 46 mm flare
